3 axis cnc stepper motor driver controller 60V, 5.0A

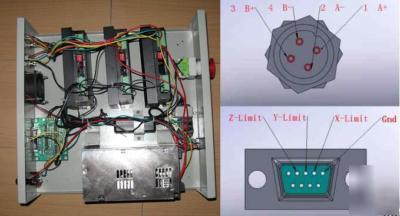

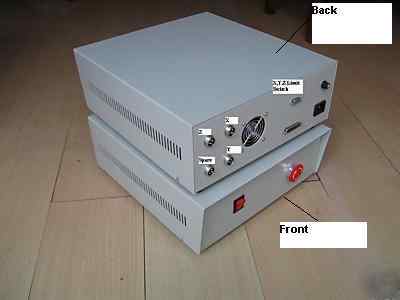

3 Axis CNC Stepper Motor Driver Controller (110V or 230V Input) for any NEMA 23, 34 Stepper motors
1: 3 PCS KL-6050 Bipolar Drivers, 60V, 5.0A
* Voltage up to 24 to 60VDC, current output up to 5.0 A
* Selectable resolutions: 1/4, 1/8
* DIP switch current setting with different values
1.5A,2.0A, 2.5A,3.0A,3.5A,4.0A,4.5A,5.0A
* Optically Isolated Signal I/O
Automatic Idle-Current Reduction
2: 1 PCS 48V/12.5A Power Supply, 115V/230V
3: 1 PC Breakout Board for 6 axis, Isolated signal,
With E-Stop, x, y, z limit Switch, Home Switch, wired
5: 12V Power Supply, 110-230VAC
This system is compatable with ALL CNC software that outputs standard step and direction signals, such as Mach3, Turbo CNC, EMC
The System will be supported at USA
http://www.kelinginc.net/KL6050wiring.pdf
