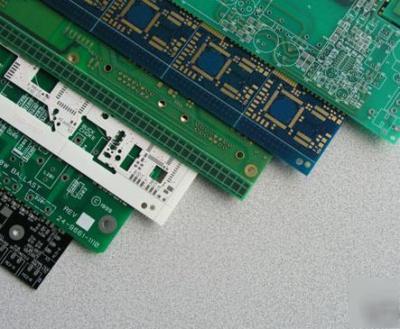

Low cost 1 - 2 layers pcb manufacture service
69.99GBP for 200"sq areas PCB fixed areas production
Like one board unit size is 10"sq then by 69.99GBP you will get:
200"sq / 10"sq = 20pcs boards.
There NO Any Hidden Charges on standard production!!!
- PCB layout, Gerber service, even it just start by a schema photo.
- PCB restoration, reproduce for single or double layers boards by samples
- Complete assembly service for low or great qtys, we can source components if need
Specifications of Standard Prototyping production rule
Board thickness: 0.048" (1.6mm) for single or double sided boards
Size: unit board size need less than 40"sq inch
Min Trace/Space: 8 mil (0.2mm)
Min finished hole size: 20mil (0.5mm)
Surface finish: HASL, Tin Plate
Multiple designs on a single board: Not Allow
Option Specifications of Unusual Prototyping production & Add charges
l 10.00GBP will charge for board cooper thickness by 2oz if need.
l 10.00GBP will charge for unusual board thickness 0.4mm 2.0mm
l 20.00GBP will charge for Min trace < 8mil (0.2mm) or Min Holes < 20mil (0.5mm)
l 20.00GBP will charge for gold plate surface finish if need
l 20.00GBP will charge for 2oz copper is needed for 1-2 Layers PCB
l 10.00GBP will charge for unusual Solder Mask Colors. Red.White,Black,Blue
l 40.00GBP level charge for unit Board size > 40 sq (258 cm) and that order quantity lower than 50pcs.
6.00GBP for every additional 500g parcel weight.
- We can directly support most PCB CAD designs like EAGLE PROTEL POWERPCB etc
Any Quote responses within 24 hours!
