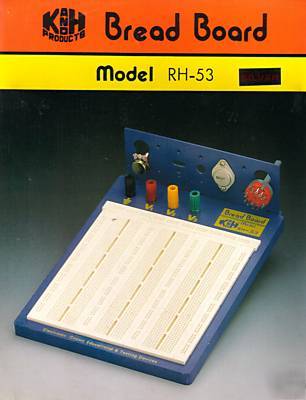

New bread board rh-53 kandh products 2420 tiepoints -
New design: round hole, snap lock, the series are popular on the market. All positions are clearly defined on an alphanumeric grid. The ABS polymer board is mounted onto a rigid base plate complete with the four 4mm terminals for power connections. A mounting bracket, which clips into the base is also provided to accept a variety of components including switches and potentiometers, etc.
For prototype design, testing and modification of circuits. These breadboards will accept the leads of nearly any electronic components (up to 0.032") in the 0.1" x 0.1" grid of solderless tie points, dual inline packages, or DIP s such as I.C. s plug in for very fast assembly and modification of circuitry.
Solid wire jumpers plug in for interconnections. Contacts are a durable alloy with nickel plating; body is made of ABS polymer. Breadboards have indexing numerals on each row and column to speed assembly and eliminate errors. Ideal for experimenters, educators and designers.
Dimension width 254 mm - ( 10.0" )
Dimension length 192 mm - ( 7.56" )
Dimension height 22 mm - ( 0.866" )
5 connected term - 384 ( Busses of 5: 384 )
25 connected bus - 20 ( Busses of 25: 20 )
IC capacity 14 pins - 27 ( 14 Pin I.C. Count: 27 )
