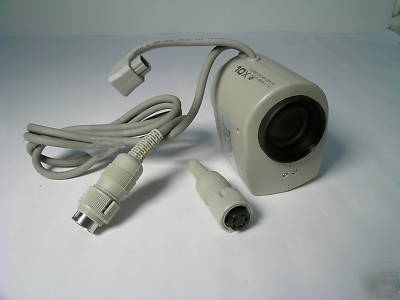

Panasonic wv-LZ61/10 6-60MM aspherical zoom lens 10X
1 3", automatic iris, 10X zoom lens shall be a Panasonic Model WV-LZ61/10 or equivalent. The lens shall be suitable for use in areas where
there is a varying light source. The lens shall be compatible with
1 3" black-and-white or color CCD cameras. The lens shall have a focal length
of 6-60mm (10X) and CS-mounting (special C-mount). The unit s optical filter size shall be: M35.5, P=0.5mm. The unit shall have a maximum
aperture ratio of 1:1.6 wide and 1:2.6 telephoto. The unit shall have an angular field of view of 4.6 telephoto and 43.7 wide(H), and 3.5
telephoto and 33.0 wide(V). The lens shall have an image format of 4.8(H) x 3.6(V)mm (
1 3"). The lens shall not exceed the following
1 16"H x 213 16"W x 23 4"D. The focus control shall have the following voltage range and current draw: 195mA at -6VDC (far), 195mA
at +6-12VDC current draw: 195mA at -6-12VDC (far), 195mA at +6-12VDC (near). The zoom control shall have the following voltage range and
current draw: 170mA at -6VDC (wide), 170mA at +6-12VDC (telephoto).
