Check-line tensiometer tension meter dxx 1KD

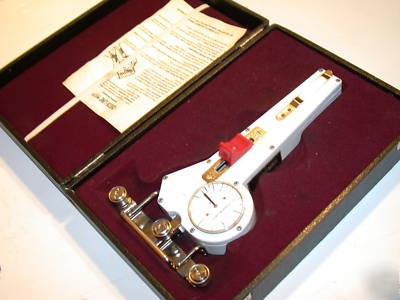

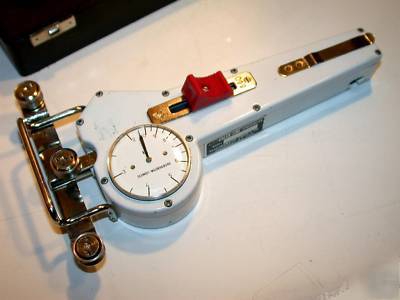

CHECK-LINE TENSIOMETER TENSION METER DXX 1KD
DXX Tension Meters are hand-held, mechanical instruments which accurately measure the running as well as static tensions of a wide variety of process materials including yarns, fibers, wires, optical fibers, tapes, etc. They employ the 3-roller principle for tension measurement where the outer two reference guide rollers remain fixed during measurement to establish a wrap angle over the middle sensing roller. The middle roller, acting against an internal calibrating spring, is displaced relative to the running line tension. This displacement is converted to a rotary motion to turn a pointer on a scale to give a reading in grams tension.
A precise jeweled movement, choice of ball bearing mounted rollers and rugged cast aluminum housing makes the unit ideal for the toughest production floor application.
Built-in mounting holes permit fixed installation for continuous in-line use.
Thumb-operated, roller shifting mechanism and exclusive snare-guide automatically guides the moving filament into the V-grooves eliminating breaks and snags.
Front filament loading permits the operator to observe running material, rollers and dial face at all times.
Units are individually calibrated for highest accuracy.
http:// /products/100045/DX2DXXManual.pdf
http:// /dx2_series/DX2
I will fully guarantee this precision meter.
