58" tbl 2HP spdl bridgeport series ii special vertical

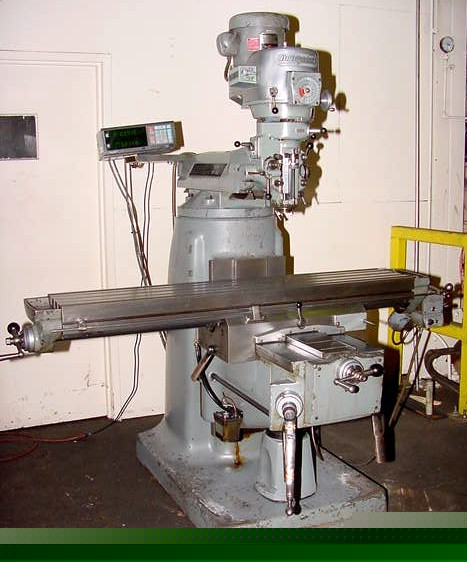

58" Tbl 2HP Spdl Bridgeport SERIES II SPECIAL VERTICAL
58" Table 2HP Spindle Bridgeport SERIES II SPECIAL VERTICAL MILL, Vari-Speed, R-8, Box Ways, Sony DR
MODEL: SERIES II SPECIAL, S/N: 2243S NEW: 1980
TABLE SIZE.................................... 11" X 58"
MAXIMUM WEIGHT OF WORKPIECE................... 1,500 LBS
LONGITUDINAL TRAVEL (MANUAL)...................... 33.5"
LONGITUDINAL TRAVEL (POWER)....................... 32.5"
CROSS TRAVEL........................................ 15"
KNEE TRAVEL......................................... 12"
RAM TRAVEL.......................................... 17"
QUILL TRAVEL......................................... 5"
INFINITELY VARIABLE SPINDLE SPEEDS...... 60 TO 4,200 RPM
POWER QUILL FEEDS (3)............ 0.003", .006" & .0015"
SPINDLE TAPER........................... #300 KWIK SWITCH
THROAT, MINIMUM TO MAXIMUM.................... 6" TO 23"
MAXIMUM TABLE LOAD ........................... 1,500 LBS
APPROX. WEIGHT................................ 3,950 LBS
APPROX. FLOOR SPACE............................. 7' X 10'
- SONY MAGNASCALE LH10 TWO AXIS DIGITAL READOUT
- 2 HP CONTINUOUS DUTY / 3 HP 30 MIN. DUTY MILLING HEAD
