Large 2 layers soic prototype board atmel pic high qlty

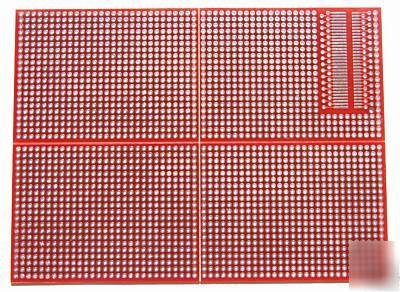

Press for view in large resolution SOIC-32 prototype board: top side
Press for view in large resolution SOIC-32 prototype board: bottom side
2 layers SOIC, DIP (DIL) and SMT 0805 prototype board with prototype area
This 2 layers prototype board can be can be used by developers who want to quickly start working with any SOIC or DIP (DIL) integrated circuit.
* Very high quality 2 layers prototype board with holes metalization and red mask - ideal for building prototype circuits
* One large SOIC placement with 64 pins (32 pins each side) on top side of board. Can be used for mounting 2-3 IC's in SO-14, SO-16, SO-20 or any other IC in SOIC case (for example MAX232 or other). All pins of SOIC-32 placement have pads for soldering any wire or connector (extension pads)
* 16 pcs. of SMT 0805 PCB placement on bottom side of board. Can be used for mounting any resistor, capacitor or other component in SMD 0805 (or 1206) case.
* large prototype area with 1.1mm diameter metalized holes - due metalization they are able to withstand a big number of heavy soldering . Standard grid 2.54mm (0.1") allow to mount any IC in DIP (DIL) case.
* 2 power bus on each side of board - very useful for supply your circuit
* size 150x110mm (5.9"x4.33")
