New sinometer BM803 ac/dc 1000A clamp meter multimeter

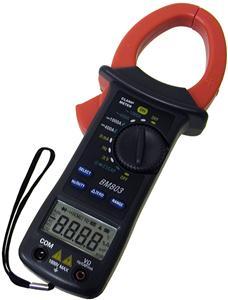

Sinometer AC/DC 1000A Clamp on Meter, BM803
3 3/4 digit LCD display of a maximum reading of 3999
Battery-low and polarity indication
The Sinometer BM803 is an auto/manual range AC/DC clamp meter, it can be used to measure AC/DC voltage and current, it has 4 ranges for both AC and DC current, 40mA, 400mA, 400A and 1000A. Also you can use it to measure resistance, capacitance, frequency, diode check as well as continuity test.
DCV: 400m/4/40/400, +/- 0.8% 1000V, +/- 1.0%
ACV: 400m/4/40/400, +/- 1.2% 700V, +/- 1.5%
DCA: 40m/100m +/- 2.0% 400/1000A +/- 1.5%
ACA: 40m/100m +/- 1.0% 400/1000A +/- 1.9%
Resistance: 400/4K/40K/400K/4M +/- 1.0% 40M, +/- 1.2%
Capacitance: 40n/400n/4m/40m/100mF 3.0%
Frequency: 40/400/4K/40K/400KHz/4M/20M Hz 0.5%,
Continuity tester: Buzzer if resistance is less than 50 ohms
Dimensions and Weight: 248 x 88 x 45mm, 360g
