Portable shop measuring microscope 20X 40X 100X in-one

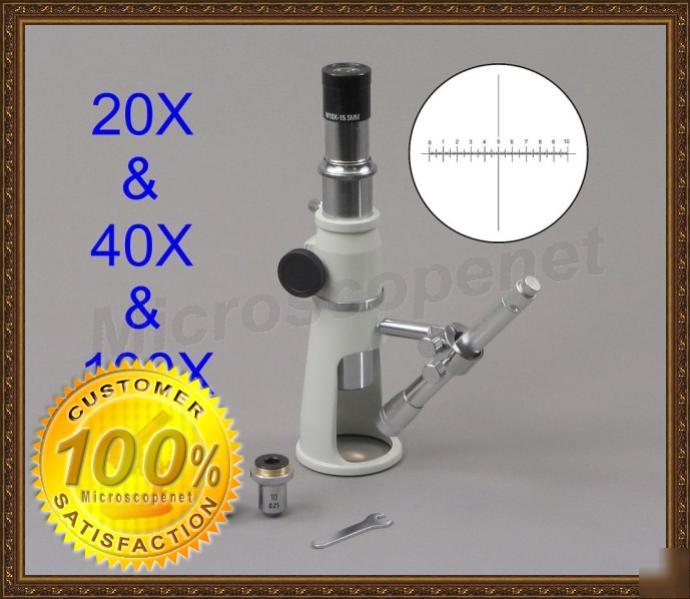

Portable Shop Measuring Microscope
* Total magnification: 20x, or 40x, or 100x
* Objectives: 2x, 4x and 10x
* Eyepiece: W10X/15.5mm with cross reticle
* Division of reticle: 20x @ 50um (1/20 mm), 40x @ 25um (1/40 mm), 100x @10um (1/100 mm)
* Diameter of bearing place: 63mm (2-1/2")
* Total height: 240mm (9-1/2")
* Working distance: 20x @15mm (9/16"),40x @16.5mm (5/8"), 100x @ 7.5mm (5/16")
* Field of view: 20x @ 8.5mm, 40x @4.2mm, 100x @1.8mm
* Focusing adjustment range (stroke) 32mm (1-1/4")
* Illustration: penlight (2 AAA batteries not included)
* Material: alloy and optical glass lenses
* Net weight: 1 lb 8 oz (0.7kg)
* Portable measuring microscope
* W10X/15.5mm eyepiece with cross reticle
* Penlight (2 AAA batteries not included)
* CCD camera (electronic eyepiece) for computer hook up
