> Zebra Z4M plus Z4M00-3001-0130 thermal label printer

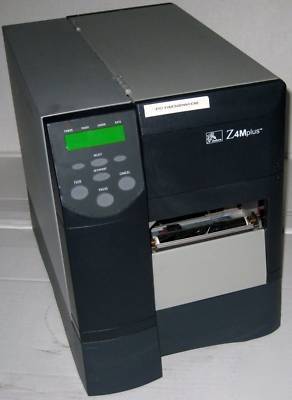

Zebra Z4M plus Z4M00-3001-0130 thermal label printer
This listing is for a bar-code (barcode) label printer.
* Make: Zebra Technologies Corporation (Tech. Corp.)
* Model #: Z4M-Plus (ZM4Plus)
* Configuration #: Z4M00-3001-0130 (Z4M003001-0130) (Z4M00-30010130) (Z4M0030010130)
* List Price: Approximately $2100
* Description: Thermal Barcode Label Printer; Thermal transfer, 300 dpi, 4 inch print width, 8 ips print speed, Serial and Parallel interfaces, 8 MB DRAM
Form follows function in this simple-to-operate Z4Mplus die-cast metal thermal printer. Available in both 203 dpi (8 dots/mm) and 300 dpi (12 dots/mm), this dependable performer offers many standard features, including ZebraLink with Alert and WebView for centralized printer management. Rely on these top-of-the-line printers to get the job done, cost-effectively, with Zebra s faster linear PCMCIA Flash memory option that drives productivity farther than ever before!
* Print methods: Thermal transfer or direct thermal
* ZebraLink (requires PSII to unleash Webview and Alert)
* Transmissive/reflective media sensor
* Metal media cover with large clear window
* Auto-ranging power supply
* Color-coded operator cues
* Back-lit LCD control panel
* RS-232 serial and bi-directional parallel interface
* Zebra's E Printhead Energy Control
* Resolutions: Standard 203 dpi (8 dots/mm)
* Maximum Print Speeds: 10" (254 mm/sec) (203 dpi) / 6" (152 mm/sec) (300 dpi)
* Standard 8MB DRAM, 2 MB Flash
* Optional: Up to 32 MB additional linear Flash (PCMCIA) / Up to 256 MB additional ATA format (PCMCIA or CompactFlash cards)
* Width: 10.93"/278 mm
* Depth: 18.69"/475 mm
* Height: 13.32"/338 mm
* Weight (without packaging): 32.4 lbs/15 kg
* Communication Interface Capabilities
* RS-232C (422/485 with serial port adapter)
* Bi-directional IEEE 1284 parallel port
* Embedded ZebraLink Webview and Alert features (require optional ZebraNet PrintServer II)

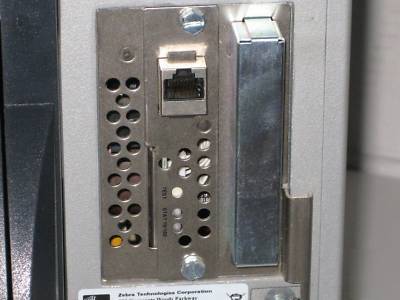

* ZebraNet PrintServer II option (internal or external)
* Label and liner width: 1"/25.4 mm to 4.5"/114 mm
* Ribbon width: 1"/25.4 mm to 4.25"/108 mm
* Maximum non-continuous label length 39"/991 mm
* Length with 203 dpi: 165"/4,202
* Length with 300 dpi (optional): 73"/1,869 mm
* Max. Roll Size: 8"/203 mm O.D. on a 3"/76 mm I.D. core
* Thickness (label & liner): .0023"/.058 mm to .01"/.25 mm
