F.w. bell series 9900 gaussmeter axial or transverse

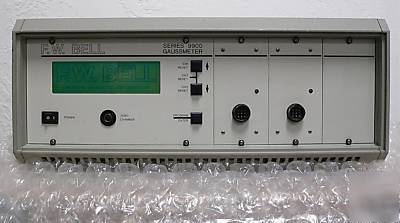

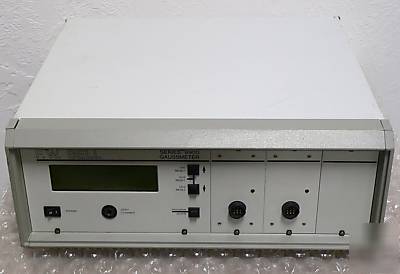

F.W. BELL SERIES 9900 GAUSSMETER
* Displays in Gauss or Tesla
* Basic Instrument Accuracy: 0.075%
* 4 -digit Back-lighted LCD Display
* Nine Ranges from 30 mG (3 T) to 3 MG (300 T), some ranges require specific probes
* Resolution of 10 G (.001 T) to 100 G (10 mT)
* Update rate up to 8 per second dependent upon set-up
* Displays 2- or 3-axis readings simultaneously
* Built-in Zero Gauss Chamber
For more information on this product, please click on the link below: http://class.phys.psu.edu/p559/Manuals/esr9900f.pdf
F.W. BELL SERIES 9900 GAUSSMETER - INCLUDES PROBES!
The Series-9900 Gaussmeter represents the latest developments in the science of measuring magnetic flux density. This item features PEAK HOLD, AUTORANGING, CLASSIFIER AND RELATIVE operation, auto ZEROing, GAUSS, or TESLA readout, digital and bargraph representation, diagnostics and remote operation with an IEEE-488 (GPIB) instrumentation bus and an RS-232 communications port. All information is displayed on an illuminated LCD.
This gaussmeter employs a menu-driven format to allow the user to program all aspects of gaussmeter operation with ease and speed. Each gaussmeter channel is completely and independently programmable.

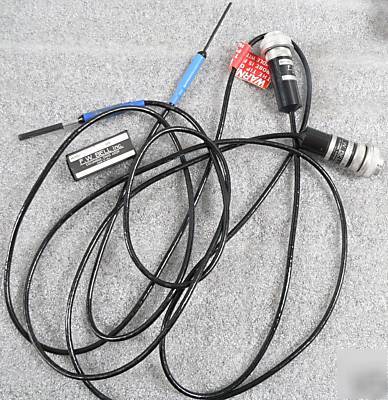

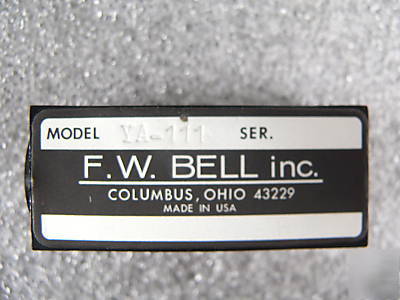

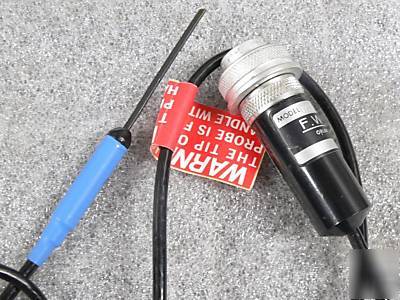

The probes in the above pictures are included with this Gaussmeter. There are three pieces - all being F.W. Bell. The Model Numbers are as follows: Model #: STB4 - 0402, Model #: YA-111, and Model #: SAG1-1802.
For more information on this product (Technical Operators Manual), please click on the link below: http:// /documents/File/Common/STM-FwBell/Manuals/UN1183.pdf
