Shop fox® M1098 13" x 40" gear head lathe w/ stand

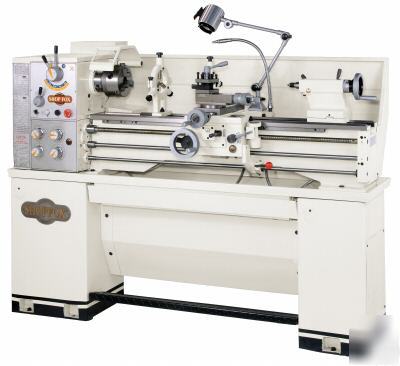

Woodstock International Shop Fox Metal Working M1098 13" x 40" Gear-Head Lathe w/Stand and foot brake
M1098 - 13" X 40" Gearhead Lathe
This Gear Head Lathe has all the features, capacity and accuracy for turning high precision projects. The precision-ground induction-hardened ways, oil-bath headstock, cast iron construction and flame-hardened headstock gears ensure long, dependable service.
* Spindle motor: 2 HP, 6.5A, 220V, 3-phase, 1720 RPM
* Distance between centers: 40"
* Height of center line: 6.5"
* Compound slide travel: 3.2"
* Tailstock barrel travel: 3"
* Cutting tool maximum size: 5/8" x 5/8"
* Spindle nose: D1-4 camlock
* Spindle speeds: 70-2,000 RPM
* Feed rate range: 0.14-0.376 mm/r
* Thread range (inch): 2.25-40 tpi
* Thread range (metric): 0.4-7 mm
* Longitudinal feed: 0.052-1.392 mm/r
* Cross feed: 0.014-0.376 mm/r
* 8" 4-Jaw chuck w/ int. & ext. jaws
* Moris taper sleeve MT5 - MT3
