Unused- mueller reactor, 430 gallon, model "f", 304L st
Unused- Mueller Reactor, 430 Gallon, Model ""F"", 304L

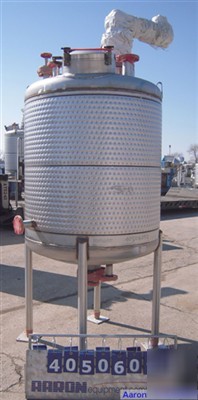

Unused- Mueller Reactor, 430 Gallon, Model "F", 304L stainless steel, vertical. 48'' diameter x 47'' straight side, dished top and bottom. Internal rated 50 psi at 212 deg F and -20 deg F at 50 psi, non-code dimple jacket on side wall only rated 120 psi at 212 deg F. Off center top entering agitator with double mechanical seal assembly. 2'' diameter x 54'' long shaft with (2) 20'' diameter 3 blade impellers, driven by a 2 hp, 3/60/230/460 volt gearmotor, approximate 236 output rpm, designed for viscosity of 3 cP. Openings: top (3) 2'', 3'', 6'', 8'' drive, 16'' manway with cover; side (2) 2''; bottom 2'', 2'' center. (2) top mounted lifting lugs. Mounted on 4 stainless steel legs, approximate 24'' discharge height. Serial #357210-23, National Board #42640, built 2006.
