Tominaga (ymz) radial drill model RH1300

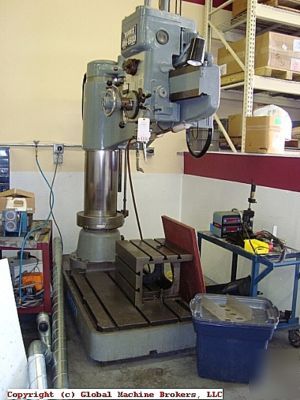

TOMINAGA (YMZ) RADIAL DRILL MODEL RH1300
Diameter of Column Sleeve 14-1/8
Max Distance, Column Sleeve Surface to 51-9/16
Min Distance, Column Sleeve Surface to 14-1/8
Max Distance, Spindle Nose to 53-1/2
Min Distance, Spindle Nose to 13
Vertical Travel of Arm 27-9/16
Size of Base (L x W x H) 80-11/16 x 35-7/16 x 7-7/8
Overall Height of Machine 96-1/16
Spindle Bearing and Quill Diameter 2-3/4 x 3-17/32
Taper of Hole in Spindle MT No. 5
Numbers of Spindle Feeds 12 Steps, 60 c/s 40 2010, 50 c/s 33 1675
Numbers of Spindle Feeds 6 Steps, 0.003 0.040 inch/rev
Spindle Drive Motor 5.5 KW (7.37 HP)
Arm Elevating Motor 1.5 KW (2 HP)
Size of Auxiliary Table 23-5/8 x 19-11/16 x 15-3/4
Floor Space Required 102-3/8 x 55-1/8
There will be a loading fee at the time of sale.
Should you have questions, please contact Bob Colangelo at (***) 484-4449 or email ****@globalmachinebrokers.com
