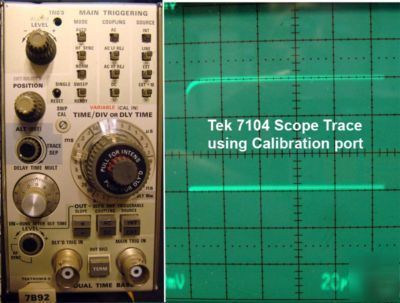

Tektronix 7B92 dual 400 mhz time base plug-in "tested"
Tektronix 7B92 Dual Channel 400 MHz Horizontal (Timebase) Amplifier for 7000 Series Oscilloscopes
The 7B92 Dual Time Base Plug-In is designed for use in the 7000-Series Oscilloscopes, providing Delaying, Dual Time Base functions. Sweep rates available are from 500 ps to 2 s/div with selectable coupling of AC, AC LF Reject, AC HF Reject, and DC. The 7B92 offers four display modes: normal, intensified delaying sweep, delayed sweep, and alternate. Other features include Int/Ext/Ext 10/Line triggering capabilities (main and delay external triggering), variable time/division, trace separation control, plus much more.
