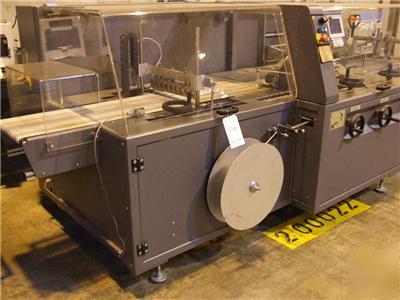

Kallfass 400/80 shrinkwrapper
Kallfass 400/80 Shrinkwrapper Search
Smart Technology for more flexibility. Continuous motion side sealers for reliable and troublefree high-performance packaging. The innovative linkage of decentralized servo drives with a PC-based ELAU MAX 4 (Gen 3) control system results in high performance with an attractive pricing.
Servo Jet 400 / 80 reaches a top performance of approx. 80 packs /min.
A colour Touchpanel with product data memory for various products allows quick changeovers by simply calling up the needed data from the database.
Technical Information Kallfass 400/80 Min/Max product length 80 mm/upon request Min/Max product width 50 mm/400 mm Sealing systems (cross sealer) Special coating, permanently heated maintenance free, fast and easy exchangeable Width of cross seal bar 450 mm Max. clearance height of cross sealer max. 200 mm Operator Interface color Touchpanel, ELAU Variable speeds transport conveyor depending on model from max 35 m/min up to max 58m/min Film reel width max 600 mm (cener folded film) Film reed outside diameter max 400 mm Min/max width of film scrap 15 mm/100 mm Power supply 400 V, 50 Hz with protective earth conductor Working height 850 (adjustable = 50 mm Position of control panel and operating side left hand side in working direction Position of control cabinet right hand side in working direction (rear side of machine) Color KALLFASS Anthracite
Kind of packaging: fully automatic - full over-wrapPackaging speed: up to 170 cycles/min (machine-dependent)Dimensions: Width of cross-seal bar: 450 mm Max clearance height of cross-sealer: 200 mm
