> Arecont vision AV5100 5 mp ip camera lens included
Arecont vision AV5100 5 mp ip camera lens included

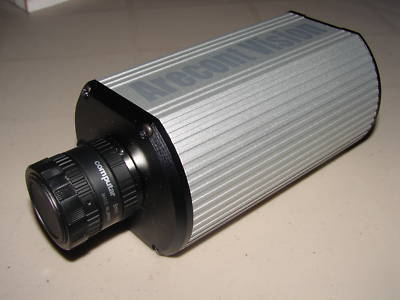

Arecont Vision AV5100 5 MegaPixel IP camera network with Computar F A Mega Pixel M0814-MP f=8mm F1.4 lens
AV5100 IP Camera Specification
5 Megapixel CMOS Image Sensor
2592(H) x 1944(V) pixel array
Video Frame Rate up to 15 fps @ 2560x1600
Motion JPEG with 21 levels of quality
TFTP and HTTP Transmission Protocol
100Base-T Ethernet Network Interface
Auto Exposure (AE) and Gain Control (AGC) >120dB
Auto Backlight Compensation
Auto Multi-Matrix White Balance
50/60Hz selectable Flicker Control
Electronic Zoom, Pan & Tilt (PTZ)
Electronic Image Rotation - up-side down image turn (mirror)
Resolution windowing down to 32x32 pixels window
Programmable Motion Blurring Control for Low-Light Mode
Programmable Resolution, Brightness, Saturation, Gamma, Sharpness, Tint
Picture-In-Picture: Simultaneous delivery of full field of view and zoomed images

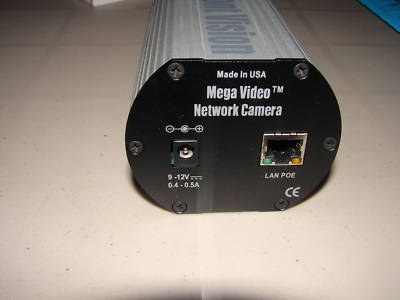

Power over Ethernet (POE) or DC Input
Compatible with IEEE 802.3af POE equipment
9V 12VDC (2.1mm x 5.5mm, center positive)
Power Consumption 5 Watts maximum
3 W x 2.5 H x 5 D (w/o lens)
1lb or 450 grams (w/o lens)
C/CS Lens Mount (w/o lens)
Operating Temperature 0 C to +50 C
Storage Temperature -20 C to +60 C
Humidity 0% to 90% (non condensing)

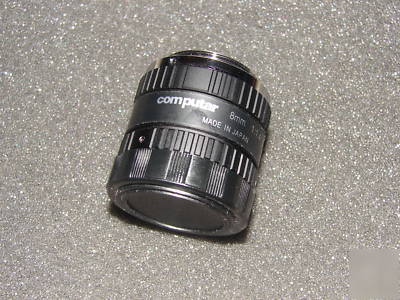

Computar M0814-MP 2/3" 8mm f1.4 w/locking Iris & Focus, Megapixel (C Mount). Dedicated design emphasis on the performance for close-up applications required in factory automation and image processing areas.
