Barnstead/thermolyne hotplate series 720A
Barnstead/Thermolyne Hotplate Series 720A
with an Aluminum Top, Serial No. 991000532150
Manufactures Comments/Specifications:
The 720 series hot plates are simple, direct entry, non-programmable
models, which allow the operator to set one temperature and one
timed period. Using a microprocessor to regulate key process
parameters - heating and ramp cycle timing, the 730 series hot plates
PMC 720 and 730 series digital hot plates are available with
aluminum and porcelain-coated stainless steel top plates. Aluminum
top plates heat quickly and uniformly. Porcelain-coated stainless steel
top plates heat-up more slowly than aluminum tops, but are more
Two top plate sizes - 7" x 7" (17.7 x 17.7 cm) or 10" x 10" (25.4 x
Gross weight of items placed on top of all 700 Series digital hot plates
should not exceed 20 lb. (9.1 kg).
Not recommended for use with metal vessels.
PMC DATAPLATE 720 and 730 Series Digital Hot Plates offer:

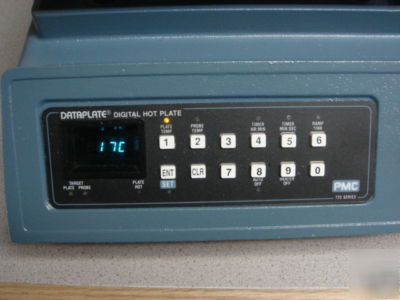

Digital display of all parameters for easy operation. Temperature can
Microprocessor controlled (closed-loop) temperature monitoring.
Temperature can be controlled at the top plate surface (RTD sensor
built into top plate) or within the sample (RTD immersion probe).
Digital countdown timer and audible alarm.
Plate HOT Indicator flashes red when top plate surface is above
AUTO-OFF control sets all parameters to zero at the end of a timed
Single keystroke HEATER OFF function key.
Only the PMC DATAPLATE 730 Series offer:
Programming - A single program of up to 75 steps (temperature
ramps or dwells) can be stored in memory.
Temperature ramping - rate can be set from 1 C/hr to 555 C/hr or
Program memory battery back-up. Program is not lost by turning
HOLD key to retain target temperature in memory if a power
Digestions - controlled, time-dependent procedures for
Thanks for stopping by and we appreciate your business!
