Hp 16500B logic analyzer sys / integrated oscilloscope
HP 16500B LOGIC ANALYSIS SYSTEM AND ITS INCLUDED MODULES AND ACCESSORIES.

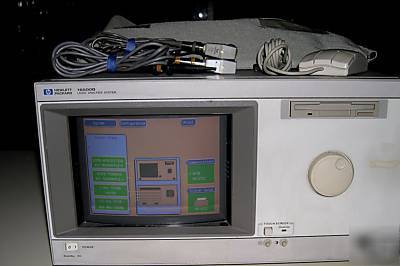

HP 16500B Logic Analysis System Mainframe
The modular logic analysis system HP 16500B mainframe can be configured for a wide range of measurement tasks, including microprocessor debug with source-code referencing, timing verification and debug, software performance analysis and characterization. The modular nature of the logic analysis system enables you to add new measurement modules as your needs change.
The mainframe and companion 16501A expander frame house up to 10 integrated, time-correlated measurement modules - state/timing analysis, oscilloscope analysis, pattern generation, ultra-deep data capture and ultra-high-speed timing. A consistent menu-driven user interface spans all modules.
Save time with the color touchscreen. Simply point to the field you want to change; the touchscreen eliminates the need to search a front panel for the right button. Pop-up menus offer all choices at a glance, and the software ensures that you always make a valid choice. Front-panel operations can also be executed with a mouse and/or keyboard, providing complete user-interface flexibility.
The networked user interface brings logic analysis to your computing environment. Use the interface module (HP 16500H) to connect your logic analysis system to Ethernet LAN. Then activate the X Window System interface for remote viewing and control at your workstation or PC. You can even operate the logic analysis system at remote locations across the Internet.

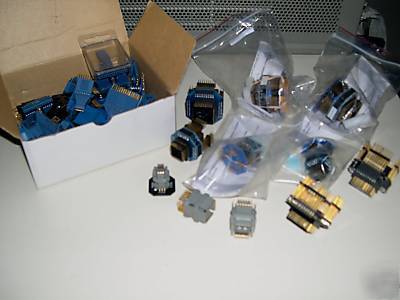

_PLCC (SMT Technology) Bug Katches
_T- Hole Technology Bug Katches

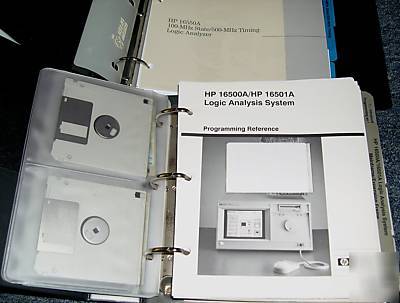

Composite Operating System Disk 1
Composite Operating System Disk 2
Composite Operating System Disk 3
Composite PerformanceVerification (PV) Test Disk

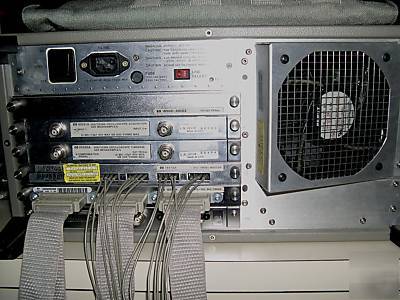

Modules included in this equipment:
HP 16550A 100 MHz state and 500 MHz timing analysis module
Offers industry standard state and timing analysis features at an affordable price. With this module, there is no need to connect special probes to view timing activity. All channels perform either state or timing functions. Set up your analyzer to perform simultaneous, fully time-correlated state analysis on some channels and timing analysis on the rest.
HP 16531A DSO Acquisition Card, 2 Channel 400 Ms/s
The HP 16532A and HP 16530A/16531A offer the advantages of a full-featured digitizing oscilloscope integrated into your logic analyzer. You can choose from either the 250-MHz bandwidth HP 16532A or the 100-MHz bandwidth HP 16530A/16531A modules. Both offer digitizing advantages such as autoscaler, automatic measurements, powerful triggering, and negative time viewing.
HP 16515A 1 GHz Timing Master Module.
This Equipment is used but it is in great working condition GUARANTEE or your money back.
