Hp 70004A, 70902A if, 70903A if, 70900B lo, mainframe +

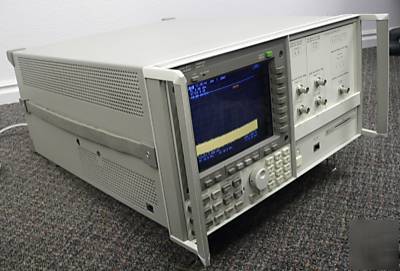

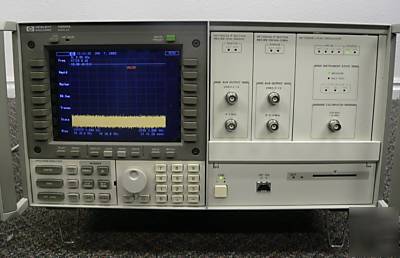

HP Agilent 70004A Spectrum Analyzer Display Mainframe

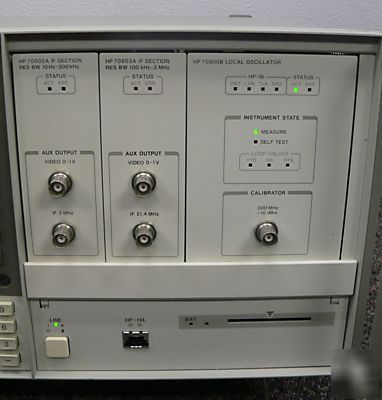

With 70902A IF Section - 10 Hz to 300 kHz
with 70903A IF Section - 100 kHz to 3 MHz
GREAT CONDITION, FULLY OPERATIONAL, 7 DAY ROR

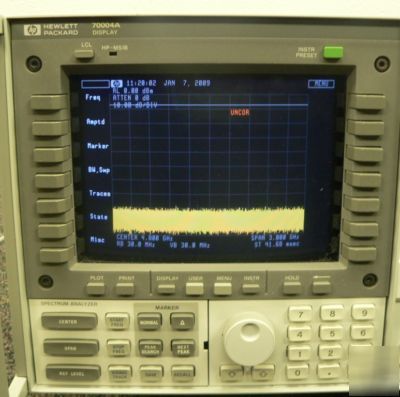

The HP Agilent 70004A display has a removable custom hardkey panel, a key to aid in selecting the MMS instrument to be controlled, and several advanced firmware features. Up to four modular instruments can be shown on the display simultaneously. The display keyboard (softkeys and hardkey panel) controls one instrument at a time. The INSTR key lets you pass control from one instrument to another with a single keystroke. The 70004A sends displayed graphics to a HP-IB printer or plotter. It also supports the HP PaintJet printer so you can have full color printed documentation of your test results. The HP-HIL connector on the front panel allows you to attach an Agilent 46021A or 98203C HP-HIL keyboard. This can be used to control the system front panel or to enter user titles or spectrum analyzer commands and small downloadable programs (DLPs).
To find out more about this item please visit: http://cp.literature.agilent.com/litweb/pdf/70900-90286.pdf
