Rosenberger leoni flexline 7-16 n connector 1-1/4"
Connector parts Material Plating
Center contact Spring bronze Silver, 3-6 m
Outer contact Brass Flash white bronze over silver(e.g. Optargen )
Body Brass Flash white bronze over silver(e.g. Optargen )
Return loss 35 dB, DC to 1 GHz
Insulation resistance 5 x103 M
Center contact resistance 1 m
Outer contact resistance 0.25 m
RF-leakage 128 dB up to 1 GHz
Intermodulation (3rd order) -117 dBm @ 2 x 20 W
- Limitations are possible due the used cable type -
Center contact captivation: axial 28 N
Coupling test torque max. 1.7 Nm
Recommended torque 0.7 Nm to 1.1 Nm
Temperature range -45 C to +85 C
Thermal shock MIL-STD-202, Meth. 107, Cond. B
Corrosion MIL-STD-202, Meth. 101, Cond. B
Vibration MIL-STD-202, Meth. 204, Cond. B
Shock MIL-STD-202, Meth. 213, Cond. I
Moisture resistance MIL-STD-202, Meth. 106
Degree of protection IEC 60529, IP68 2.5 bar

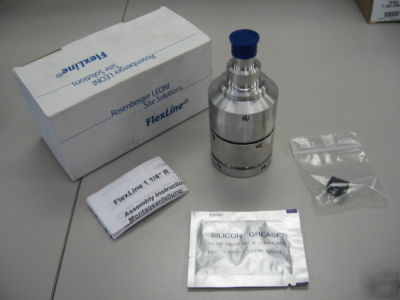

Comes with Instructions, Connector, Rubber Piece, and Silicone Grease.
Can be used with Andrew LDF6-50 Cable
