10 x microchip ENC28J60 soic ic spi ethernet interface

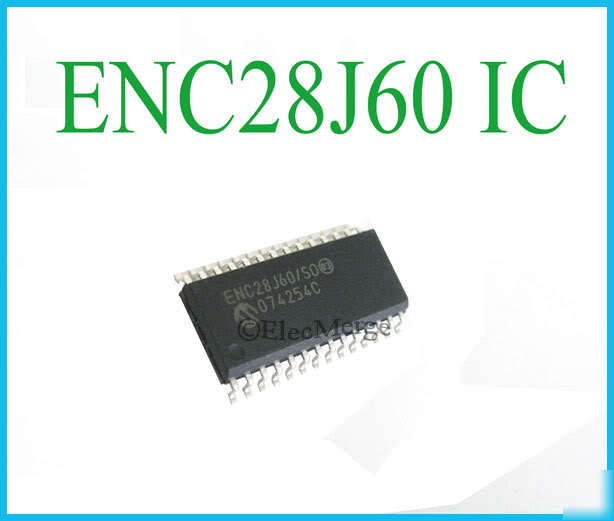

Microchip ENC28J60 SMD Ethernet IC
Microchip ENC28J60 Ethernet IC
The Microchip Technology Inc. ENC28J60 is a standalone Ethernet controller with an industry standard Serial Peripheral Interface (SPI ). It is designed to serve as an Ethernet network interface for any microcontroller equipped with SPI.
The ENC28J60 meets all of the specifications for IEEE 802.3. It incorporates a number of packet filtering schemes to limit incoming packets. It also provides internal DMA for fast data throughput and support for
hardware assisted IP checksum calculation.
Communication with the microcontroller is
implemented via SPI, with data rates up to 10 Mbit/s. Dedicated pins are used for LED link and activity indication and for transmit and receive interrupts.
* IEEE 802.3 compatible Ethernet controller
* Integrated MAC and 10BASE-T PHY
* Support one 10BASE-T port with automatic polarity detection and correction
* Support Full and Half-Duplex modes
* Programmable automatic retransmit on collision
* Programmable padding and CRC generation
* Programmable automatic rejection of erroneous packets
* SPI Interface with speed up to 10 Mb/s
* 10 x ENC28J60 SMD Ethernet Interface IC
