3X flexible shaft coupling (stepper motor coupler cnc)

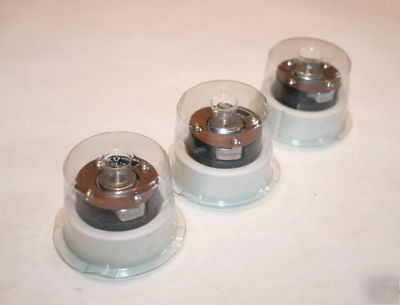

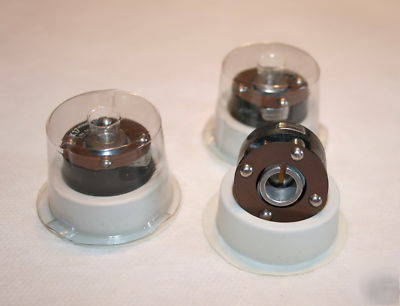

Three NEW Flexible Shaft Couplers

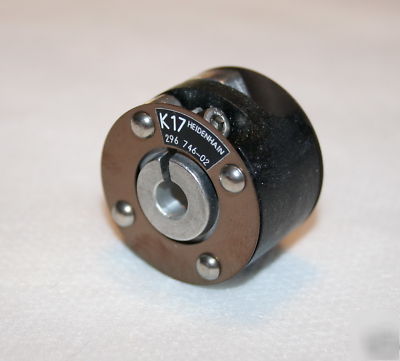

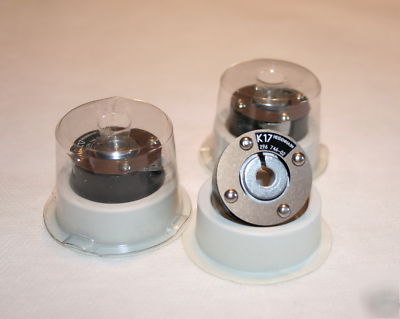

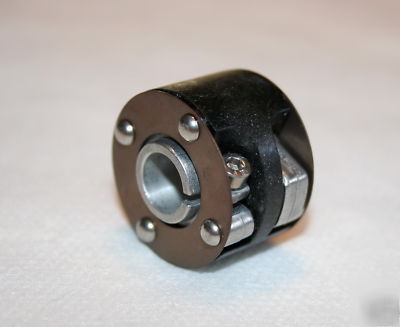

These are Heidenhain model K17 - 02 flexible motor shaft couplings. The part number is 296 746-02. It's a flexible adapter between 6mm and 10mm shafts.
Flexible couplings are used to connect a motor's shaft to the device it rotates, such as a lead screw, encoder, or any other load. They are designed to have some intentional freedom of movement in the pan & tilt directions, but no freedom at all in the rotational direction. They are important because without using flexible couplings, any tiny misalignment between the axis of the motor and the thing it rotates, will cause a strong resisting moment and mechanical stress. In every rotation, the motor will essentially try to distort the shaft it's rotating!
These are BRAND NEW, never used couplings.
Note - I have other sizes and types of flexible couplers. Check out my other items for sale!
For exact specifications and a drawing, follow the link to this datasheet (see pages 10 and 11).
This item is guaranteed non-DOA!
* If you have any questions regarding this item, feel free to ask and we'll answer to the best of our knowledge.
* Israel residents must pay 16.5% VAT as required by law.
