> FS6S1565 off line switching power supply ic topswitch 2

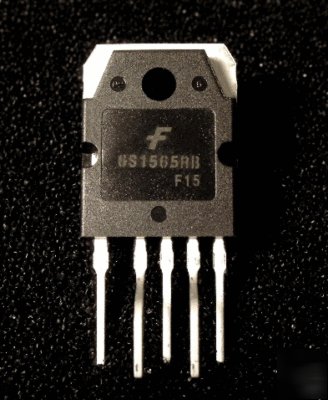

FS6S1565 off line switching power supply ic topswitch 2
Integrated Switching Power Supply IC
650V 15A continuous current, 270W dissipation.
Better and more rugged than the popular "topswitch" series.
Used to build off-line switching supplies with very few components. Contains the PWM controller and power MOSFET, current sense, and comprehensive thermal and electrical protection. Application circuits in Mfr's notes below.
Design Guidelines for Off-line Forward Converters Using Fairchild Power Switch (FPSTM)
Design Considerations for Switched Mode Power Supplies Using A Fairchild Power Switch (FPS) in a Flyback Converter
Switched Mode Power Supply based on a Fairchild Power Switch (FPS) with Sync
