Lincoln electric ln-23P wire feeder - K316L-1

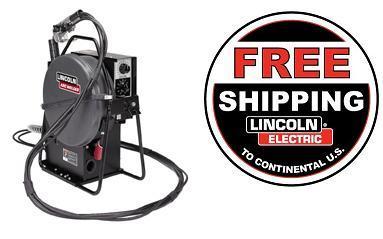

Lincoln Electric LN-23P Wire Feeder
The LN-23P semiautomatic wire feeder is able to handle the toughest work sites and is an excellent choice for field erection and pipe welding applications. It is portable, easy to set-up, and ideal for reaching difficult locations. The LN-23P utilizes special lightweight 14 lb. (6.35kg Innershield (FCAW-S) coils, making it extremely easy to carry around the job site, and has a built-in dual wire feed speed switch for out-of-position welding.
Weighs less than 50 lbs. (22.7 kg) including optional Magnum Innershield gun and 14 lb (6.3 kg) coil of electrode.
Continuous wire feed speed control, voltage control and analog voltmeter are standard.
Completely enclosed wire reel keeps the wire free of contaminants.
Equipped with trigger interlock circuit to reduce operator fatigue.
Gun-mounted two-position switch allows on-the-fly change to 83% of the preset wire feed speed.
Electrode and control cable quickly connect to power source.
One or two LN-23P wire feeders can be directly connected to recommended Lincoln power sources, but only one can be used at a time.
Dimensions (in): 20.5 H x 9 W x 19 D
Processes: Innershield (FCAW-S)
Wire Speed: 30-170 rpm, 0.7-4.3 m/min
25 ft. (7.6m) Control Cable (6-pin to leads for terminal strip).
25 ft. (7.6m) 1/0 Electrode Cable.
3/32" Drive Rolls/Guide Tubes.
