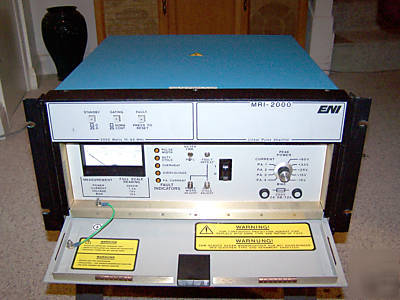

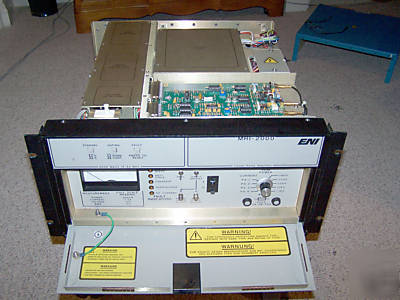

Eni model mri-2000 rf power amplifier nmr, mri, proton
These items are sophisticated high performance pulsed RF power amplifiers designed specifically for NMR and MRI applications. All three units are in excellent physical condition (cosmetically and electrically) and will be warranted by BPT for 90 days from the time of purchase. Returns are not accepted!
* Schematics and board layouts
A C14-C15 AC mains power adapter will also be included. The mains input voltage is internally selectable. We will rewire to suite your needs.
These items are scientific instruments and not applicable to any type of communications applications. If you have any questions, please ask. All sales are final and we can not accept any returns. The normal list price for a new comparative product is $19,990.00.
Complete specifications and manual are included. Please contact us at ****@bptec.com for additional details or answers to any other questions.
MRI-2000 Technical Specifications
Frequency Coverage: 15 - 64 MHz
Rated Peak Bower Output: 2000 W peak
Narrowband Gain Variation: +/- 0.15 dB (within 250kHz bandwidth)
Maximum Pulse Width: 20 milliseconds
Pulse Droop: <0.5dB (with 6 millisecond 2kW rectangular pulse)
RF Envelope Rise or Fall Time: 1 microsecond
Maximum RF Input VSWR: <1.5:1 (50 ohm nominal)
Harmonic Distortion: -20 dBc, 2nd. 12 dBc, 3rd
AC Mains Requirements: 180 - 252VAC, 50 60 Hz, 1 phase
Taps provided for 190, 209, 220 and 240 VAC
All units currently wired for 240V (will rewire)
AC mains connector: 320 (C15M) (C15(F) - C14(M) adapter cable included)

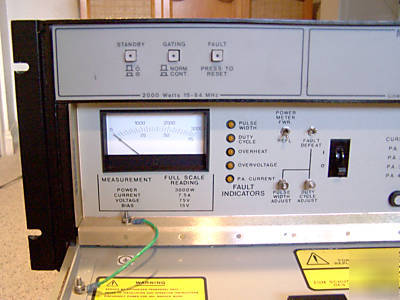

Metering: Module currents and voltages
Physical Size: (inches, H x W x D) 8.7 X 17 X 18.5 (Rack Mount)

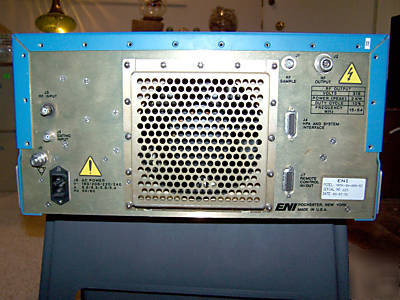

Gating Input Connector: BNC (F)
RF Output Connector: Type N (F)
Remote Control In/Out: 15-pin 'D' subminiature Connector
System Interface: 15-pin 'D' subminiature Connector
