Lem norma D6100 wide band power analyzer/ref. wattmeter

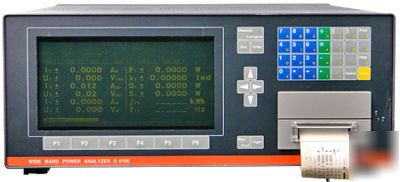

LEM Norma D6100 Wide Band Power Analyzer/Reference Wattmeter
The system series D6000 is designed to be completely modular. There are basic instruments for six or twelve plug-in units, various current and voltage channels, interfaces and additional options. Resulting from that there are complete sets, optimized for standard, motor or transformer analysis, each in single-, three or six phase versions.
This version is designed specially for testing tranformers. It offers an even higher measuring accuracy at very small power factors. Accuracies of power measurements are better than 0.1% for power factors of 1 to 0.1 and 0.4% for power factors of 0.01. This allows exact analysis.
The no-load power losses are corrected automatically in accordance with the form factor. The single phase version of the D 6000 T is often used for measuring high quality capacitors and reactors.
1x 61D1: IEEE-488 interface and 6 analog outputs
3x 61U1: Standard voltage channel with double screening and 3 safety inputs for HI , LO and GUARD.
3x 61I1: Plug-in unit for the connection of a triaxial shunt, a shunt adapter (for external high current shunts), the clamp-on transformer 61C1, or the LEM transducer set IT. Via a 9pol socket the shunts or transformers are identified automatically.
3x A6414 01020 Triaxial Shunts
Wide Band Power Analyzer/Reference Wattmeter
