Dual-axis magnetic sensor module with i 2 c interface

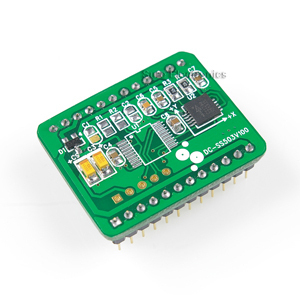

Dual-axis Magnetic Sensor Module With I 2 c Interface
This self-made module integrates a dual-axis magnetic sensor called MMC212xMG by using its own I 2 c interface. This RoHS-compliant sensor consumes as low as 0.4mA@3V with 50 measurements per second. Its full integration of 2-axis magnetic sensors and electronic circuits resulting in less external components needed. The miniaturized size makes it ideal for a variety of applications like electronic compass, GPS navigation, position sensing etc.
1. Sensor size: 5.0(mm) x 5.0(mm)x0.9(mm)
2. Module size: 34.29 (mm) X 27.94(mm) X12.50 (mm)
4. Supply Voltage: DC 3.3V or 5V
5. I 2 c slave, fast (= 400KHz) mode
6. High measurement accuracy, sensitivity and stability
7. Negligible linear tolerance, magnetic hysteresis tolerance and repetitive tolerance
8. DIP-like packaging which facilitates further integration
9. Operating Temperature: -40? 85?
10. Storage Temperature: -55? 125?
Dual-axis Magnetic Sensor Module 1
