Gto pro sw 3000XL swing gate operator sw 3000

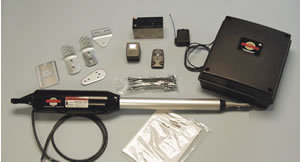

Kit Includes: Operator arm, AC transformer, Control board (enclosed in weatherproof operator housing), Receiver, Entry transmitter, 10' battery wire harness, Mounting hardware, Installation/safety manual, Caution signs, Warning Beeper, Adjustable obstacle-reversing safety feature, BATTERY and Battery Box.
The GTO PRO-SW3000xl: Is a Low Voltage Swing Gate Operator designed for tubular steel, vinyl, wood, or ornamental gates for residential, farm and light commercial use. The PRO-SW3000XL is for single swing gates. The PRO-SW3200XL is the additional arm needed if you have double swing gates and are available upon request.
* Temperature rating of motor: -5 F (-21 C) to +160 F (+71 C)
* Opening time is from 15 seconds.
* Range of arm stroke is up to 11" (0.3 m). Operator length with arm fully retracted is 33.25" (0.85 m), mounting point to mounting point
* Optional second battery fits in control box, used for solar applications or high traffic applications, if needed
* Battery charge maintained by a 120V AC/60 Htz input and 18V AC at 40 VA output, transformer rectified to 14 V DC through the GTO Control Board. NOTE: Transformer should never be connected directly to any battery.
* Optional GTO Solar Panel Charger: float voltage 14.5 V DC output from a 19-3/8" (49.21 cm) x 15-1/4" (38.74 cm) silicon alloy panel. Generates minimum of 10 watts at 600 mA. A gated diode on the control board prevents battery discharge.
* The GTO control board can be programmed for pull-to-open or push-to-open.
* Adjustable auto close, obstruction sensitivity and dual gate sequencing.
* Slow Start/Stop for added cycles and system life.
* Auto-memorization of digital transmitter code.
* Charging regulated circuit on control board. "Sleep draw" is 15 mA; "active draw" is 2 to 5 amps.
* GTO remote-mounted RF receiver tuned at 318 MHz.
* Receiver with 10 ft. cable
* Installation/safety manual
* Adjustable obstacle-reversing safety feature
* For a single swing gate up to 16 ft. long and 650 lbs.
* (Dual gates require second arm SW-3200XL)
* COMMERCIAL FEATURE - Soft Start / Soft Stop feature increases life of the system.
* Open and Close speeds from 18 seconds.
* Large control box with room for extra battery and accessories.
* For all types of gates; chain link, tube, ornamental, wood and vinyl.
* Provides up to 225 cycles per day using transformer charger.
* UL APPROVED - obstruction sensing enhances gate operation safety.
* Adjustable gate activation alert and auto-close.
* 12-volt battery backup (included) opens and closes the gate even during power outage.
* 24 month Limited Warranty.
* High cycle capability with true soft start and stop operation.
* Full access ready package includes battery, radio receiver, entry transmitter, AC transformer, and all necessary mounting hardware for a standard installation.
* Accommodates push or pull-to-open (inward swing or outward swing) installations.
* Note: Solid gates can create wind resistance and can affect the performance of the entire gate system. Call a technician familar with your application for the best regarding for your application.
