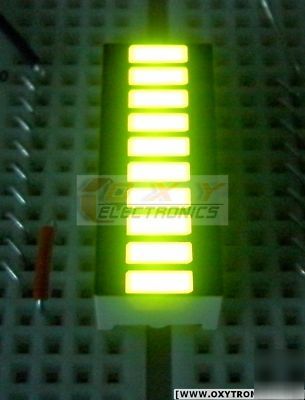

New 10 segment led bargraph array dual led color rg
SUMMARY: 10-Segment Bargraph with Dual Color LED.
This listing includes: One(1) pcs of the following Bargraph:
SUITABLE FOR LEVEL INDICATORS.
EXCELLENT ON/OFF CONTRAST.
STANDARD: GRAY FACE, WHITE SEGMENT.
Colors available: RED and GREEN (Dual color segment bargraph).
Note: Each segment gives TWO colors: Red or Green. This is a dual color segment bargraph. You can switch between colors only (Red or Green), the bargraph will not accept some green color segments or some red segments. You can only switch colors.
Peak Wavelength: 630/570 nm
* Power Dissipation (Pd): 80*10 mw
Forward Current (If): 30 mA
Peak Forward Current (Ifp): 150 mA
Electro-Optical Data (@ 10 mA):
* Forward Voltage - Typical: 2.1/2.2 V
Forward Voltage - Maximum: 2.2/2.5 V
Luminous Intensity Typical: 120/100 Mcd
* Bargraph has 10 pins on one side for selecting segments individually.
* On the other side you see 2 Pins for selecting color either Red or Green.
* Please refer to the images for more details.
Any further questions that you may have, please contact us, we are here to assist you.
