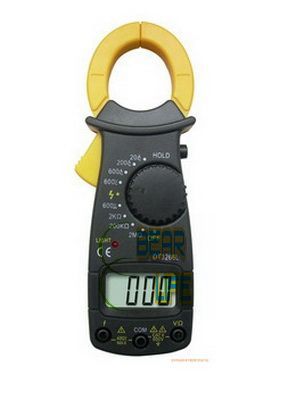

clamp on digital multimeter lcd meter amp test tester
This meter uses large scale integration and unique function circuits. It can measure AC Voltage, AC Current , resistance, diode, frequency, temperature and fulfill audible continuity test. With the function of phase indication and identifying live-wire, this clamp meter is an ideal instrument for electricians.
Display: 3.5 digital LCD with a MAX reading of 1999, Auto polarity display
Over-load indication: "1" is displayed
operating Envionment: 0 ~40 ,at<80%RH
Storage Environment: -10 ~50 ,at<85%RH
Power: 2 size AAA batteries (not included)
Low battery indication: support
Clamp dimension: 25mm for open jaw; 35mm for inner diameter
The accuracy Below is within one year after its test when leaving factory, and the temperature range is 23 5 ,at<75% relative humidity.
Range AC2A Resolution 1mA Accuracy (2.5%+10d)
Range AC20A Resolution 10mA Accuracy (2.5%+10d)
Range AC200A Resolution 100MA Accuracy (2.5%+10d)
Range AC600A Resolution 1A Accuracy (2.5%+10d)
Range AC600v Resolution 1V Accuracy (1.2%+5d)
Range 2K Resolution 1 Accuracy (1.0%+4d)
Range 200K Resolution 100 Accuracy (1.0%+4d)
Range 2M Resolution 1K Accuracy (1.0%+4d)
Overload Protection: 250V AC virtual value
Open Circuit 2.8V, Buzzer <(50 20)
Range: 180V~400V, Live wire detect: LIGHT or LCD indication
Color: black with yellow, black with red
