2X 250MHZ oscilloscope clip probes 100X up to 1.2KV
A3125 Two 250MHZ Oscilloscope probes for Tektronix and HP Oscilloscope scope
-X100 up to 1.2KV, 2 units + accessories
The new TX3100 series of passive probe has excellent price performance value, handle double absolutely. Increase safety creepage distance. bandwidth up to 250MHz, mini-box designed. Full set accessories are included with each probe. All probes meet IEC1010-2-031,1200VDC, CATII
The TX3100 series is a passive high impedance high-voltage oscilloscope probe designed and calibrated for use on instruments having an input impedance of 1Mohm shunted by 15pF.
* Low Frequency Compensation Adjustment:
* Low frequency response can be matched to the oscilloscope by adjusting the compensation trimmer on the head of the probe.
* Connect the probe to the oscilloscope and to a 1Khz square waveform source
* Set the oscilloscope to display two to the three cycles and two to six vertical divisions.
* Carefully adjust the trimmer tool to obtain the flattest tops to the square waves displayed on this oscilloscope,
* High Frequency compensation adjustment
* General Purpose, Bench or Field
* Economical, Yet High Quality
* High Input Impedance (X100 range)
* Useable with scopes having Bandwidth DC to 250 MHz
* Compensation range: 10 to 50 pF
* Maximum Input Voltage: 1200 VDC (DC+peak AC)
* Full set a accessories are included with each probe.
* All probes meet IEC61010-2-031,1200Vpp, CATII

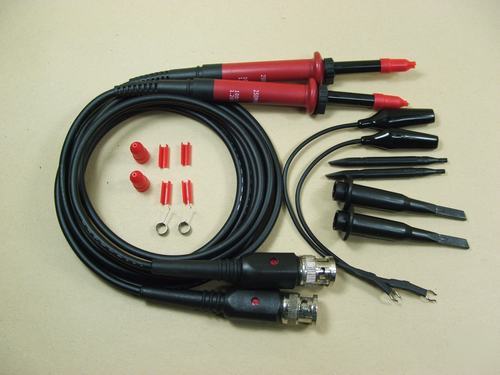

* Two 250MHZ Oscilloscope probes with Mini Alligator Clip and ground lead;
