Digital usb pc oscilloscope
The CTI268 PC oscilloscope permits powerful measurement at an easy price. It can display up to 8 waveforms on a Windows PC screen by measuring 1 channel at 1Msamples/s or 2 or 4 channels at 250k sample/s, 6 or 8 channels at 125k samples/s. (2 of the 8 channels are on the back) The measurement probes clip and stay in place, liberating the hands. The user can zoom in on the signals with the slider bars and easily make frequency, time and voltage measurements with the markers. All data can be saved in a file or exported as an image for future retrieval.The USB cable is included in the package.
Did you ever wish you can look at just one extra signal that a common 2 channel scope can't provide (e.g. SPI protocol wires) but only to be frustrated by the fact you can't see the whole picture? Or maybe you have a special project and need a large amount of channels? The CTI268 fulfills the needs with 8 available channels. Nota bene: The BNC connectors of two of the eight channels are in the back
According to the sampling theorem, in general, it is required to sample waveforms at twice or more the maximum frequency content.(e.g. an audio signal has spectrum content up to 22.05kHz, so audio is often recorded at a sampling rate of 44.1 k samples per second or higher) But what if you run your oscilloscope by mistake at a too low speed, or probe a signal that has unexpected intermittent high frequency component? Channel X is equipped with undersampling detection circuitry that warns the user if by mistake the signal is varying faster than the current sampling speed.
Many other scopes have limited bandwidth, limiting practical usage at much lesser than the actual sampling rate.The CTI268 utilizes the full bandwidth with cut off much higher than the sampling rate thus incurring no attenuation at highest frequencies of scope operation.

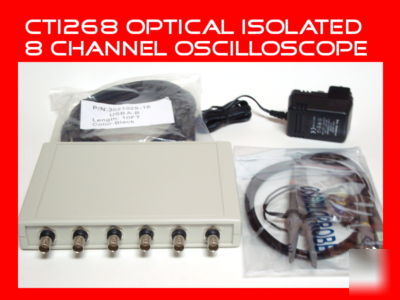

This listing includes one pair of 10x probes, USB cable and AC power adapter cable.
Eight channels in split display
10bits in all modes except, 12 bits in 1 channel mode
