Mbm fc-10 collators/ 20 bins with st-31 stacker 2005

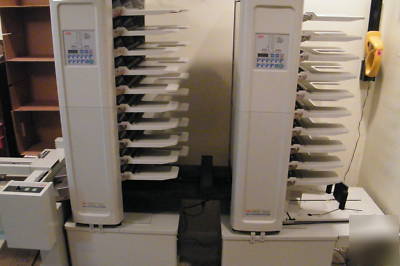

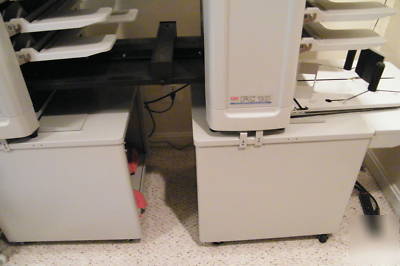

For sale is a 2005 model MBM FC-10 Collating System with 20 bins. This is a wonderful friction fed system (I personally beleive it is the best on the market for friction fed machines) I have used this for 4 years then upgraded to a suction fed system. It has been sitting for 1 year doing nothing since I upgraded. There is nothing wrong, it has been in my home office since I bought it & I have it stored under plastic for protection. This will also come with the ST-31 Large Capacity Stacker. I purchased this new in 2005 for $13,000. This comes with all the manuals for the machine as well as a service manual for those mechanically inclined! This system is a work horse for any collating jobs that you have & can keep up consistently before needing cleaning. Highly recommended for shops that do large collating jobs! Another plus,tower 1 had all 30 feed tires replaced 1 year ago. Tower 2 was not used as frequently as tower 1 so does not need to be replaced for some time. This will also include the 2 stands designed to hold these machines that came from MBM when bought for $800! (just for 2 stands!?) Feel free to contact me for any questions,& thanks for looking.
Paper Feed: Roller separator system
Station Capacity: 1.1" (approx. 350 sheets of 64g/m2 paper)
Paper Transport : Belt roller system
Stacking Capacity: 2.6" (approx. 880 sheets of 64 glm2 paper)
Paper Stacking System: Right and left index system (200 apart) or straight stacking
Speed: 40-60 set/minute (8.5" x 11" size paper) selectable
Max. paper Size: 12.9" x 18.5"
Paper quality: 1st and 10th station: 35 to 210 glm2
2nd to 9th station: 35 to 160 glm2
Detection of Station in use: Stations in use can be checked by trial feed programmed by CHECK key.
Detection of Paper Quality: Paper thickness on each station can be checked by trial feed programmed by CHECK key.
Feed Error Detection: Empty feed, no paper, paper jam, double feed (detection of paper thickness with photo-electric sensors)
Other Detection: Stacking table full, paper eject jam, back door open/close status, (Staple cartridge empty and paper jam detection when optional stapler-puncher is mounted).
- Automatic elevation of paper feed table
- Alternate collation (Neighboring two stations can be used together for the same sheet/page.
- Insertion of partitioning paper (according to the designated set)
- Programmed insertion of cover paper (loading covers on the top station and back covers on the bottom: Good for collation for system-notebook, chits, etc.)
- Three levels of paper feed pressure (four levels for Station 1 and 10, and three levels for Station 2 to 9)
- Three levels of separator pressure (Fourth level built-in while not displayed on the tablet: Used for special papers)

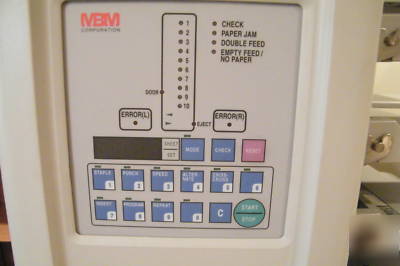

- Four-digit display on the operation panel counter, addition/subtraction (preset) switch-enabled
Power Supply Voltage: AC120V 60Hz
Dimensions: 21.5"W x 29.6"D x 41.6"H
Auxiliary paper guide right and left assemblies
Auxiliary paper guide right assembly Auxiliary paper guide left assembly

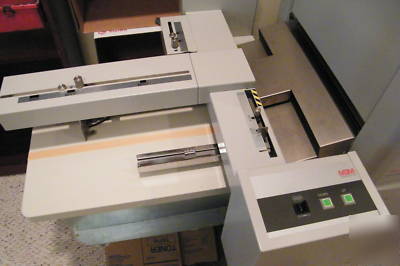

Product Specifications for Large-Capacity Stacker ST-31
Paper stacking method: Crisscross and straight stacking (to be switched)
Paper size: 8.5"x11" to 11 "x17"
Paper quality: Wood free paper, medium-quality paper, wood free perforated paper
Crisscross method: 1" transverse slide crisscross
Processing capacity: In case 8.5"x11" paper is used (with the shorter side at the top)
When connected with a single collator:
High-speed = 42 sets flow-speed = 32 sets per minute
When connected with connected collators:
High-speed = 27 sets flow-speed = 20 sets per minute
Dimensions: 27.S" (W) x 24.2" (D) x 31.7" (H)
Weight: Machine body: 112.4 lbs
Detection of stacking paper jam
Enable to position the table at any height
Instant stop in case of irregularity in the collator
