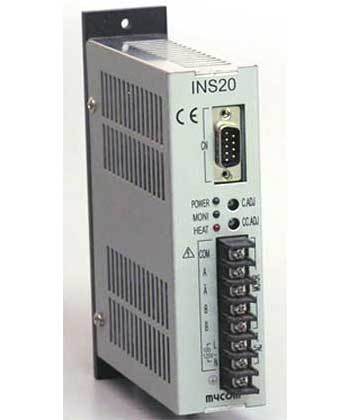

Mycom INS20 nanodrive 2 phase stepping motor driver
MYCOM INS20 NanoDrive 2 Phase Stepping Motor Driver
MYCOM INS20 NanoDrive 2 Phase Stepping Motor Driver
MYCOM INS20 NanoDrive 2 Phase Stepper Motor Driver
Single phase 100-120V 10% 50/60Hz
Uni-Polar constant current type
Basic step: 1, 2, 2.5, 4,5, 8, 10, 20, 25, 40, 50, 100, 200, 250, 500, 1000 division
Input of output current off
Input signal voltage: L :0 - 0.5V, H : 4 - 5V
1 pulse (PLUSE, CW/CCW), 2 pulse (CW, CCW), CO
Photocoupler open-collector output
Limited capacity 25V 10mA or less
Power input: Motor leads collection terminal - PE terminal
Power input: Motor leads collection terminal - Signal I/O terminal
No abnormality detected after the application of the 2.0kV(60Hz) voltage
among each terminal for one second in normal temperature and humidity.
