New rebuild kit for 9†south bend lathe model a - all

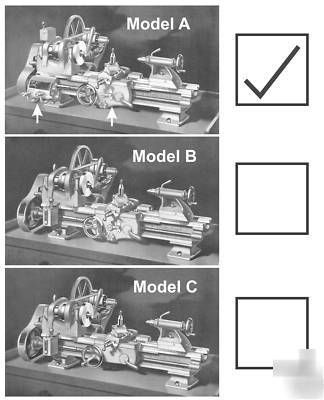

Rebuild Kit for 9 South Bend Lathe Model A
We have had a number of questions regarding this kit being used for an SBL horizontal 10K so here is what you should know. The horizontal 10k uses most of the same parts and assemblies as the 9" workshop lathe however there are some small differences with respect to these kits. You will need the longer spring-loaded wicks for a 10k headstock. There will NOT be any special die cut wipers for the tailstock but we can supply the felt for that if you want it. The horizontal drive, the gearbox, the powered apron, the reversing gear and the back gear is essentially the same. Please email if you have other questions, Thanks!

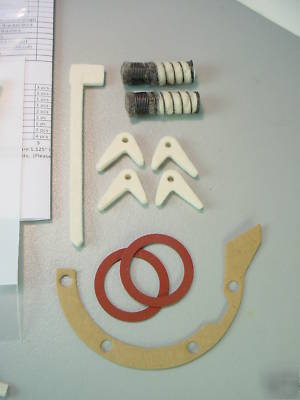

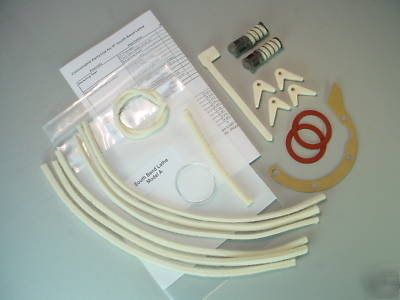

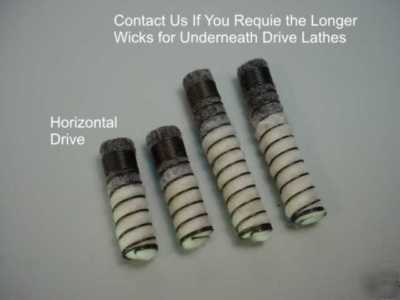

* 2 Precision Spring Loaded Capillary oil wicks for horizontal drives only.
* *(Note, if your lathe has the underneath drive, you will need the longer wicks illustrated above)
* Die Cut Apron Clutch Gasket
* Die Cut Apron Oil Trough Wick and pulling wire.
* 4 Die Cut Way Wipers for the Saddle.
* 2 Hard Fiber Washers for the Drive Countershaft (controls oil)
* Round felt wick for the Reversing Gears
* Square felts for shaft lubrication.
* Set of Felts for the Quick Change Gear Box (Shafts, Bosses, and Oil Passages)
* If you have any questions, please don t hesitate to contact me. I will be happy to answer any questions.
* Thanks for your consideration.
