Allen bradley selectable contact output 1771-ow

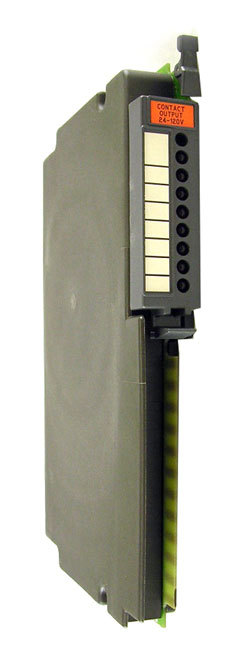

Allen Bradley Selectable Contact Output 1771-OW NIB
* Applications: Industrial Control & Automation
* Module Location: 1771 I/O chassis
* Voltage Rating: 24 - 138V AC RMS / 24 - 125V DC
* Current Rating: 1A per output (maximum)
* Surge Current: 1A maximum per output (at rated power)
* Power Rating: DC 30W per output (resistive)/ AC (suppressed): 30W per output (resistive)
* Minimum Contact Load: DC 10mA @ 24V / AC 10mA @ 24V
* Operate/Release Time: 5msec maximum
* Bounce Time: 1msec maximum
* Switching Frequency 10Hz maximum
* Power Dissipation: 3.7 Watts (max.); 3.3 Watts (min)
* Thermal Dissipation 12.6 BTU/hr (max.); 11.3 BTU/hr (min)
* Backplane Current: 700mA maximum
* Wire Size: 14 gage stranded maximum; 3/64 inch insulation maximum
