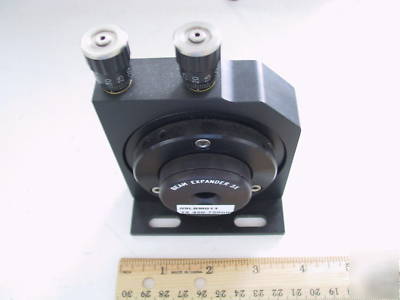

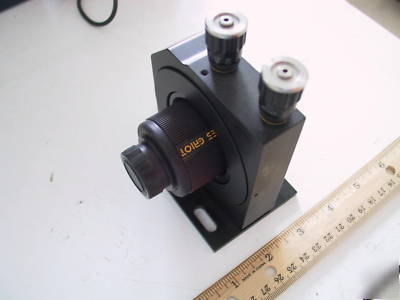

Cvi melles griot 3X beam expander with mount
The beam expander itself is 1.75 inches diameter. The mount is about 4.75 inches tall, with a beam center that is 48mm high.
Both items are in mint condition, ready to use in your optics lab.
The current price of this beam expander is $640.00, plus another
$200 or so for the top adjust mount. SAVE !!!!!
See http:// /Catalog/Pages/Template1a.aspx?pcid=1482&filter=0 for full details.
Larger output beams with reduced beam divergence for holographic and other distant illumination applications
Available for broadband applications from 450 to 750 nm
Optimized for 1-mm-diameter input beams
Far-field focusing from 3 m to infinity
Directly mounts to 09 LAM-series adjustable alignment adaptors
Recommended Maximum Input Beam Diameter (1/e2)
09 LBM precision laser beam expanders
CVI Melles Griot precision laser beam expanders produce peak-to-peak wavefront distortion of less than /4 in expansion ratios of 3 , 10 , 20 , or 30 . The Galilean design shortens overall length and improves performance by minimizing spherical aberration. A padded hardwood box is included for safe storage.
