Ferrite transformer "e" cores, 10 sets (20 cores)

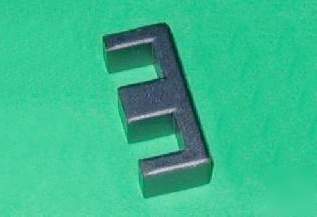

Ferrite Transformer "E" Cores, 10 sets (20 cores)
Note: I do not have bobbins for these cores. These cores are AVX/TPC E-2506A made with F1 material, and are
intended for use in switching power supplies as power transformers,
inductors, and also for electronic ballast applications. AL = 1650. Assembled core dimensions are 0.8" x 1.0" (21mm x 25mm).
These are small cores but are ideal for DC-to-DC converters, pulse
transformers, etc. The lot is for 10 full sets, 20 cores total.These are new materials, and make ideal inductors and
transformers for use with most switching regulator chips like the
National LM3578 chip, and most of the National Simple switcher devices.Data sheets on the LM3578, LM2574, LM2575, LM2576, & LM2577
for multiple lots. It will almost always calculate too high.
