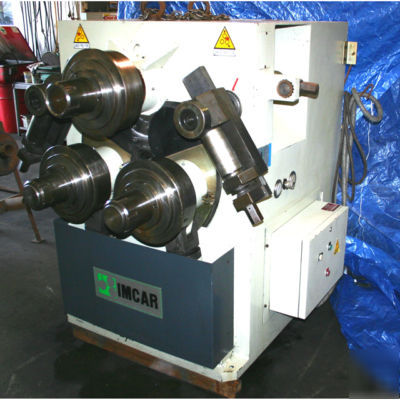

Imcar 4" x 4" x 1/2" capacity angle roll
YOU ARE VIEWING A VERY NICE IMCAR 4" X 4" X 1/2" CAPACITY ANGLE ROLL. THIS UNIT IS MADE IN ITALY AND IS STILL
SOLD TODAY. THE CURRENT REPLACEMENT COST OF THIS ROLL IS $77,000.00!!
DON'T LET THIS BARGAIN GET AWAY!
4" x 4" x 1/2" Angle Bending Roll
The Imcar CPHV-100 has 3 driving rolls, double initial pinch universal roll bending machine with independent hydraulic adjustment of both lateral bending rolls and hydraulic powered rotation of all three rolls. Lateral guides are adjustable in all three axii. This versatile unit is ideal for rolling standard/special sections plus tube/pipe in mild-structural-stainless steels and a variety of other materials. The angle bending capacity is leg out 4 x , leg in 3 x 3/8 with standard equipment.
MATERIAL SPECIFICATIONS / DESCRIPTION
* Chart indicates minimum suggested inside bending diameters at maximum section size using mild steel -
* Specifications subject to change/modification without prior notice
* Special rolls and/or tooling may be required for some angle, channel rolling and/or for serial production on some sections
* Bending I.D.'s may be limited by predicted material distortion
* Dual LED Digital Displays monitor bending roll positions
* Rugged, rigid, one piece solid steel weldment frame, normalized and precision machined, ample sized access panels and ventilation for internal hydraulic unit 3 Shafts Driven w/ 3 Direct Coupled Hydraulic Motors and Planetary Speed Reducers for 100% efficient torque delivery
* Larger, high strength steel shafts, heat treated and ground, journaled in dual self aligning spherical roller bearings for optimum performance
* Hydraulic power unit integral to the machine frame
* Multi axis, 6 way, fully adjustable lateral guides
* Variable Speed rotation via electronic proportional valves
* Universal bending rolls with modular components, hardened and wear resistant.
* Operates both Horizontally AND Vertically
* Pedestal Console with LED Readouts
