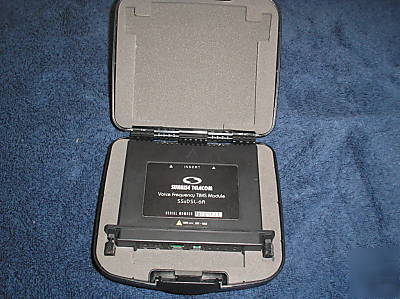

Sunrise telecom xdsl mtt tims cname caller id module 2
Great module- we just don't need it anymore. More info can be found here. It is used for call analysis and caller ID information.
http:// /products/mtt_vf_tims.pdf
Transmit and receive frequency and level measurement
Noise and Signal to-Noise ratio measurement
Leverages existing MTT platform
Cost effective and future proof
Handset/Headset jack: RJ-9 connector
Chassis built-in microphone/speaker
Transmit Frequency Measurements
Range: +10 dBm to -40 dBm (600 ), +8 dBm to -40 dBm
Fixed Frequency from 50 Hz to 20 kHz
Frequency Sweep: Programmable Start/Stop Frequency, Step
Rate, & Step Increment with programmable frequency skip
3- Tone Slope: 404 Hz, 1004 Hz, and 2804 Hz
The MTT-6 VF TIMS Module, part of the Modular Test Toolkit (MTT)
family of products, is a rugged, battery-operated handheld test solution
suitable for special services technicians installing and troubleshooting
analog services. The voice frequency transmission impairment measurement
(VF TIMS) test set performs a wide variety of key functions
including frequency and level measurement, noise measurement,
signal-to-noise measurement and power influence measurement.
In addition, the module is capable of placing calls in loop start, ground
start and direct inward dialing modes.
2008 Sunrise Telecom Incorporated. All rights reserved. Specifications subject to change without notice. All product and company names are trademarks of their respective corporations.
Sunrise Telecom San Jose, Modena, and Taiwan facilities are ISO 9001 certified. Do not reproduce, redistribute, or repost without written permission from Sunrise Telecom. C_0037 A00 Aug. 2008
Receive Frequency Measurements
Range: +10 to -70 dBm (600 ), +8 dBm to -70 dBm (900 )
1 dB from 90 dBrn to 20 dBrn
2 dB from 20 dBrn to 10 dBrn
Weighting Filters: C-Message, 3.4 kHz flat, D filter
Receiver Signal-to-Noise Measurements
Signal Level Range: -10 dBm to -40 dBm
Noise Level Range: +10 dBrn to +70 dBrn
Notch Filter: > 50 dB rejection at 1004 Hz
Receiver Power Influence (Noise-to-Ground)
Accuracy: 1.5 dB from 40 dBrn to 130 dBrn
Three Level Impulse Noise Measurements
Threshold Spread: Three Level (low/mid/high)
Programmable from 2 dB to 6 dB, with 1 dB step
Signaling: Loop Start, Ground Start*, Direct Inward Dial*
PBX and CO emulation for Ground Start and Direct Inward Dial
Programmable Flash duration from 300 to 1000 ms
Dial Method: DTMF, MF, and Dial Pulse
Dial Signals (Digits): 0 to 9, * and #
Line Hold Circuit: DC Resistance approximately 200
Caller ID with Number, Name and timestamp
Call Completion time/setup time
Delay: Dial Tone, Post Dialing, and Voice
Digit Capture/Analysis (Loop Start and DID)
Level Range: -2 dBm to -20 dBm
Module Size: 5.0 (W) x 3.5 (L) x 0.9 (H) [12.6 cm x 9 cm 2.2 cm]
Operating Temperature: 32 F to 122 F [0 C to 50 C]
Storage Temperature: -4 F to 158 F [-20 C to 70 C]
Humidity: 5% to 85% noncondensing
