Bridgeport vertical milling machine with southwest

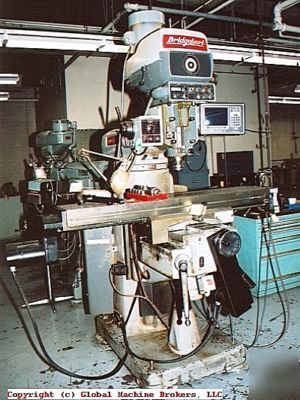

BRIDGEPORT Vertical Milling Machine With SOUTHWEST
BRIDGEPORT Vertical Milling Machine With SOUTHWEST INDUSTRIES
Trak #A.G.E. 2 Two Axis CNC/Three Axis Digital Readout Control,
Standard, S/N 2408 (Retrofitted In: 1997)
Working surface of table 11" x 58"
Minimum/Maximum throat distance 10-5/8"/26-5/8"
Maximum table load capacity 1500 lbs
Spindle speeds, two ranges, infinitely variable 50 to 3500 rpm
Feeds: longitudinal and cross 3/8 to 24 ipm
spindle, infinitely variable 0.6-2.5 ipm
Rapid traverse rate: longitudinal & cross 24 ipm
Taper in spindle Quick-Change 40
Head tilts: left to right 90 degrees
SOUTHWEST INDUSTRIES Trak #A.G.E. 2 two-axis CNC/three-axis digital readout
control with 9" CRT, RS-232 port and remote On/Off switch
Three-axis digital readout during manual operations
Ballscrews installed in the table and saddle with D.C. servo motors
Chrome plated saddle and knee ways
Collet holder with (13) collets & (1) drill chuck
BIJUR automatic lubrication system for ways and lead screws
Model 4J 4 H.P. 3/60/220-440 volt spindle motor and electrical controls
Machine is wired for 220 volt operation.
Very Good. This machine may be
run as a manual or a CNC vertical
Approximate Dimensions: 79" L-R x 71" F-B x 96"H
