Doall hydraulic horizontal surface grinder 6 x 18

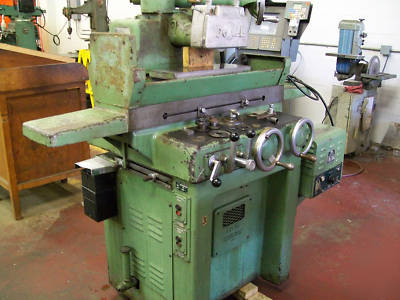

DoAll Hydraulic Horizontal Surface Grinder 6 x 18
With Mag Chuck & Coolant System
6" x 18" DOALL HEAVY DUTY HYDRAULIC
HORIZONTAL-SPINDLE SURFACE GRINDER
4. Super Precision Spindle Model MD-1
5. Wired 480 Volts 3 Phase 60Hz
6. Motors rated 220/440 Volts 3 Phase 60Hz
Condition Good as removed from service
DoAll Selectron Chuck Control Model 150
6" x 18" Electro-Magnetic Chuck 220 vdc

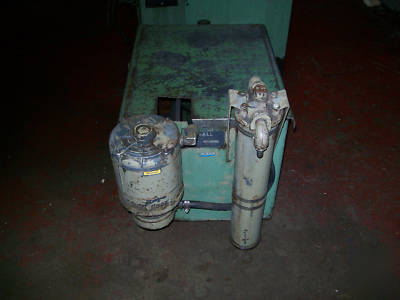

Coolant System (Tank & Pump) Model 41714
Table Working Surface, W x L............. 6" x 18"
Grinding Wheel, Maximum Diameter..... 7"
Grinding Wheel, Width........................ 1/2"
Grinding Wheel, Hole Diameter........... 1-1/4"
Grinding Wheel Spindle Motor............ 1 HP/3450 RPM
Hydraulic System Motor..................... 1.5 HP/1735 RPM
Overall Dimensions, L x D x H............ 68" x 40" x 66
Weight, Approximately....................... 2500 LBS.
Table Working Surface, W x L........... 6" x 18"
Grinding Wheel, Maximum Diameter....... 7"
Grinding Wheel, Width.................. 1/2"
Grinding Wheel, Hole Diameter.......... 1-1/4"
Grinding Wheel Spindle Motor........... 1 HP/3450 RPM
Hydraulic System Motor................. 1.5 HP/1735 RPM
Overall Dimensions, L x D x H.............. 68" x 40" x 66
Weight, Approximately.................. 2200 LBS.
We will load flatbeds, step deck trailers, containers, etc; FOB up to 5,000 lbs, quotes are available if needed. Items over 40,000 lbs maybe have additional charges.
