Elimia rotary phase converter 30HP 30 hp cnc grade

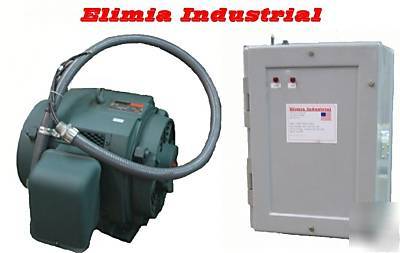

This is for a brand new 30 HP Elimia phase converter. Converts nominal 240 VAC single phase to 240 VAC three phase.
Heart of the converter is the heavy duty Reliance cast iron motor. This is a heavy duty ODP fan cooled motor with a service factor of 1.15. Insulation class is B. Nema frame size 286T. RPM 1760. Shaft has been removed for safety.

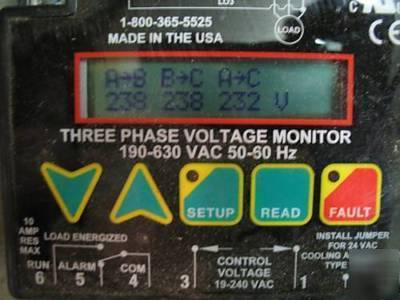

This converter is balanced to within 3% up to 35 Amps. This means that it can run sensitive voltage dependent equipment safely and consistantly. Balanced even at no load within 2%.
Maximum rated output is 22.38 KW. Use your equipment ratings full load Amperage multiplied by your nominal 220/240 input voltage to determine.
We ran numerous test on our converters with various starting and running designs under various loads. The input voltage at our shop is pretty large for nominal 240 VAC. It usually runs around 238-245 VAC. Yours may range from 218 - 245 VAC give or take.

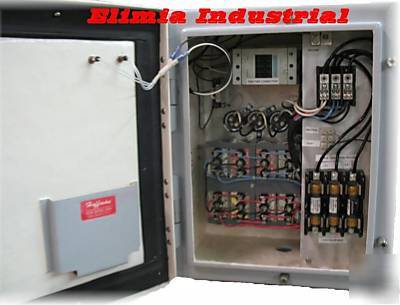

You will need to provide wiring from a 240 Volt double pole breaker to this unit. You will need to run #4 Copper or larger wire depending on your needs. The controls for the converter are 120 Volt. You will need to run a 120 Volt supply as well.
