> Duplo booklet maker system
Duplo booklet maker system

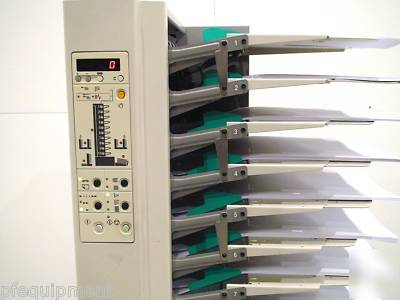

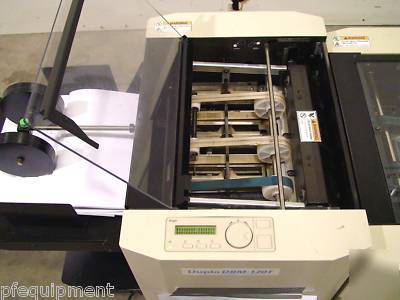

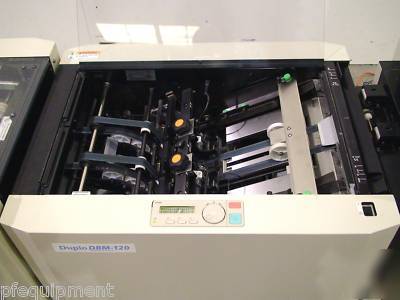

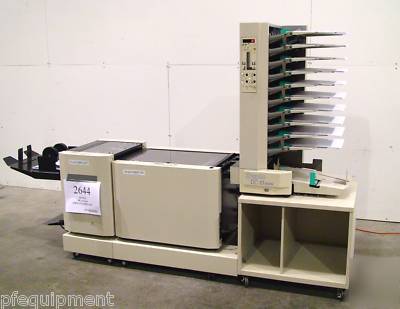

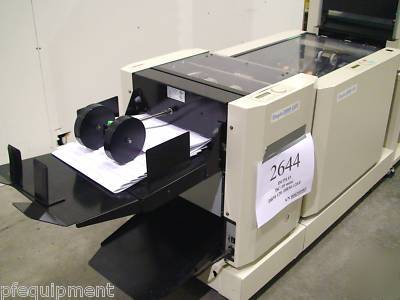

This Duplo Collator with Stapler Folder and Trimmer is productive, cost effective, reliable and easy to use. Simply load your paper stock into the 10 bin DC-10 Collator, select a few basic options from the control panels and the machine will automatically adjust for the size and thickness of the booklet you are running. We purchased this Duplo Booklet Maker System from a church print shop in Wichita, Kansas.

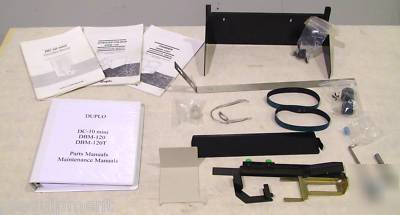

This Duplo System is in excellent condition. Comes with Instruction Manuals, Parts and Maintenance Manuals.
Duplo DC-10 Mini Collator Specifications:

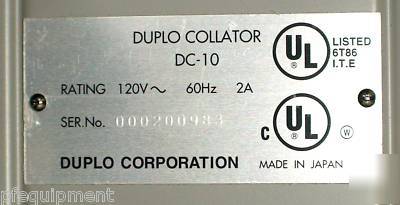

* Electrical: 120V, 60Hz, 2.0 Amps
* Paper feeding method: 3-rings friction feed
* Paper carrying method: Roller belt
* Smallest: A5 (148 x 210 mm [5.83 x 8.27 in.])
* Largest: A3SR (320 x 450 mm [12.60 x 17.72 in.]).
But the smallest paper (A5) can only be fed horizontally and the largest paper (A3SR) be collated in the STRAIGHT mode. The OFFSET mode can be carried out only for size A3 (297 x 420 mm [11.692 x 16.535 in.) and smaller.
* Paper quality: Medium quality paper, fine stencil paper, fine quality paper (52.3 to 128 g/m2)
* Collating speed: 35 sets/min. or 55 sets/min.
But it depends on the specifications of the peripherals if it is used.
* Paper receiving table capacity: 55 mm (Fine quality paper: 64 g/m2, equivalent to 550 sheets)
* Paper feed table detection: The PRESET key is used to distinguish the paper feed tables used
* Paper feed error detection: No-feeding, multi-feeding, paper jamming
* Other detections: No-paper detection, door open detection, paper receiving table full detection, peripherals error detection
* Displayed on the control panel
* Carrier cover open/close, Tower B error (when towers are linked), Tower A error (When towers are linked), peripherals error, paper receiving table full, No paper on tables, no-feeding, multi-feeding, paper jamming
* Counter: 4-digit adding counter, 4-digit subtracting counter
* Forcible ejection function
* Selection of STRAIGHT mode/OFFSET mode (Paper sorted by left/right swing)
* Selection of NORMAL, ALTERNATIVE, INTERLEAVING modes
* Collating speed can be changed in two levels

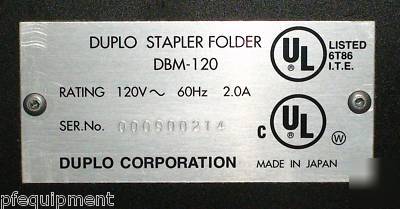

Duplo Stapler Folder Specifications:
* Electrical: 120V, 60Hz., 2.0A
* Automatic paper size setting function
* Saddle-stapling and folding/Center-folding
Length: 200 to 450 mm (7.87" to 17.72")
Width: 200 to 320 mm (7.87" to 12.60")
* A3: 297 x 420 mm (11.69" x 16.54"
* A4: 210 x 297 mm (8.27" x 11.69")
* B4: 257 x 364 mm (10.12" x 14.33")
* A3SR: 320 x 450 mm (12.60" x 17.72")
* LGL: 8.5" x 14" (215.9 x 355.6 mm)
* LTR: 8.5" x 11" (215.9 x 279.4 mm)
* 11" x 17" (279.4 x 431.8 mm)
* Paper quality: Stencil fine quality paper, medium quality paper, fine quality paper (64 to 128 g/m2)
* Maximum processing speed: 40 sets/minute (A4-80 g/m2, 10 sheets)
* Stapling ability: Fine quality paper: 80 g/m2. Equivalent to 25 sheets or less
* Folding ability: Fine quality paper: 80 g/m2. Equivalent to 25 sheets or less
* Saddle-stapled/folded paper: About 20 sets for single-folding of 10 sheets of A4 vertical 80 g/m2 paper
* Side-stapled paper: Stacking height of 90 mm (3.54"). About 70 sets of 10 sheets of A4 80 g/m2
* Paper jam (paper receiving section, paper aligning section, stapling section, folding section, paper ejecting section)
* Open/closed (for top cover)
* Electrical: 120V, 60Hz, 2.1A
* Length: 100 to 225 mm (3.94" to 8.86") (Length for single-fold)
* Width: 200 to 320 mm ( 7.87" to 12.60"), 148 to 182 mm (5.53" to 7.17") (However single-fold of less than 10 sheets of paper when the paper width is less than 182 mm (7.17")
* Stencil fine quality paper, medium quality paper, fine quality paper: 64 to 128 g/m2 (However, the cover must be above 80 g/m2.)
* Art/coated paper: 105 to 128 g/m2
* Maximum processing speed: 40 sets/min.
* Trimming ability: 80 g/m2 paper 19 sheets + 128 g/m2 paper 1 sheet: Total 20 sheets of single-folded paper
* Trimming length: Single-fold of less than 25 sheets of 80 g/m2 fine quality paper (Less than 10 sheets when the paper width is more than double the paper length) (Less than 10 sheets in one set for paper above 100 g/m2)
* Range of trimmed paper sizes: 85 to 225 mm (3.35" to 8.86")
* Saddle-stapled/folded paper: About 20 sets for single-folding of 10 sheets of A4 vertical 80 g/m2 paper. (When paper length is less than 120 mm (4.72"), folded paper may open or paper may be conveyed crookedly.)
* Side-stapled paper: Stacking height of 90 mm (3.54"). About 70 sets of 10 sheets of A4 80 g/m2 paper
* Open/closed (for top cover, scrap box, handle slot cover)
* Blade position malfunction
