Sei inspector exp+ handheld radiation detector, demo

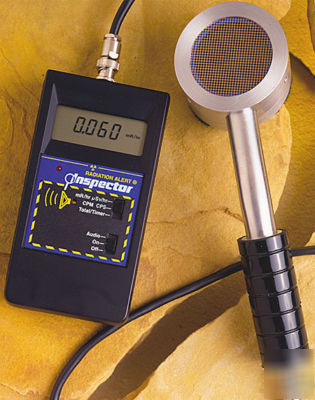

* RAP-RS1 Probe - External Halogen-quenched, uncompensated GM tube with thin mica window, 1.4-2.0 mg/cm2 areal density.
* Effective diameter of window is 45 mm (1.75 in.). Radiation symbol on back of probe marks the center of the detector.
* Anodized aluminum housing with coated, black foam grip. 500-volt power supply is in the probe head.
* Approx. length: 22.2 cm (8.75 in.)
* Diameter: 7 cm (2.75 in.)
* Connector - Amphenol tuchel connectors.

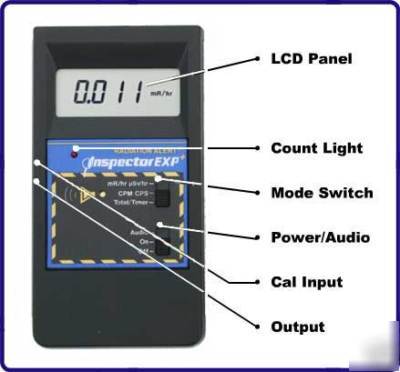

* 4-digit liquid crystal display with indicators.
* Display will update every 3 seconds. At low background levels, the update is the moving average for the past 30-second time period. The timed period for the moving average decreases as the radiation level increases.
* mR/hr .001 - 50 and CPM 1 - 160,000.
* Red LED flashes with each radiation event.
* Internally mounted beeper (can be switched off for silent operation).
* Dual miniature jack drives CMOS or TTL devices: count to computer or datalogger. Sub-mini jack input allows for electronic calibration.
* Meter will hold at full scale in fields as high as 100 times the maximum reading.
* One 9-volt alkaline battery.
* Battery life is 2160 hours at normal background.
* -10 C to 50 C (14 F to 122 F)
* Anodized aluminum housing
* Size - Approx. 8.75 in. (22.23 cm) Dia.: 2.75 in. (7.0 cm)
* Connector - Amphenol-Tucal
* Handle - Black foam grip
* Weight - Approx. 11.5 oz. (328 g) w/o cable
* 3500 CPM/mR/hr referenced to Cs-137. Smallest detectable level for I-125 is .02 Ci at contact. Timer can set 1 minute sampling periods from 1 to 10 minutes.
* mR/hr 10% typical (NIST), 15% max - 0 to 100
Sv/hr 10% typical (NIST), 15% max - 01 - 1000
CPM 10% typical (NIST), 15% max - 0 to 350,000
* Inspector: 547.1 grams (19.3 oz.) without battery
* 150 x 80 x 30 mm (5.9 x 3.3 x 1.2 in.)
* Carrying Case, Cable for Inspector EXP+: Beldon 9853 with Amphenol 31226 twinax. CE Certification.
* 1 year limited, 90 day Warranty on GM Detector
