Tektronix 475 200 mhz dual channel oscilloscope dm 44
Tektronix 475 200 Mhz dual channel oscilloscope DM 44
The above images are for representational purposes and may not be the item you receive.
IT Remarketing is located at 6600 Long Point Rd, Suite 103, Houston, TX 77055.
This unit is in really good physical conditions.

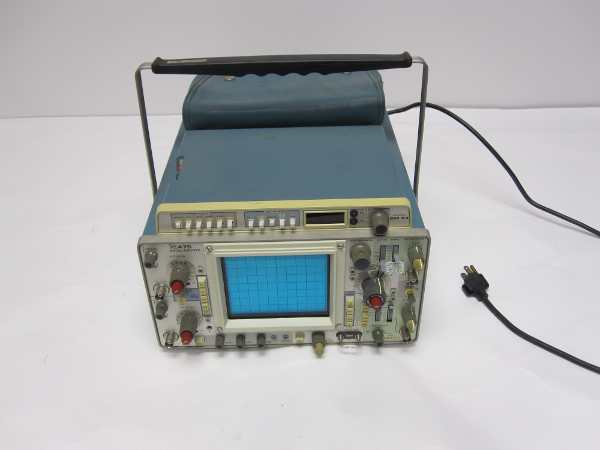

The item that you are looking at is used TEKTRONIX 475 OSCILLOSCOPE. This item powers up fine, and has a power cord. This unit may need to be calibrated. No further testing has been done other than just powering the item up.
VERTICAL DEFLECTION (2 IDENTICAL CHANNELS)
Bandwidth* and Rise Time (at all deflection factors from 50 terminated source)
*Measured at -3 dB, Bandwidth may be limited to approx 20 MHz by bandwidth limit switch.
Lower -3 dB point, ac coupling 1X probe: 10 Hz or less. 10X probe: 1 Hz or less.
1-2-5 sequence, accurate 3%. Uncalibrated, continuously variable between steps and to at least 12.5 V/div (465/475) to at least 25 V/div (475A). In cascade mode sensitivity is approx 1 mV/div (465); approx 400 V/div (475); and approx 2.5 mV/div (475A). Cascaded bandwidth is at least 50 MHz (465/475/475A) when signal out is terminated in 50 .
Ch 1; Ch 2 (normal and inverted), alternate, chopped (465-approx 250 kHz rate, 475/475A-approx 1 MHz rate), added; X-Y (Ch 1-X, Ch 2-Y)
Common-mode rejection ratio at least 20 dB at 20 MHz (50 MHz for 475/475A) for common-mode signals of 6 div or less
Probe tip deflection factors for 1X or 10X coded probes are automatically indicated by two readout lights behind the knob skirts. All lights are off when the channel is not displayed. Ground reference display selectable at probe (when dc coupled).
1 M 2% paralleled by approx 20 pF.
500 V (p-p ac at 1 kHz or less)
Permits viewing leading edge of displayed waveform
Connectors provide correct voltages for two optional P6201 FET Probes
1x 475 Oscilloscopes Tektronix
EVERYTHING THAT YOU SEE IN THE PICTURES.
This item is sold tested and with a 7-day warranty against being DOA.
IT Remarketing and all equipment listed by ITR is located at 2121 Brittmoore Rd. Ste.3500 Houston, TX 77043.
Monday - Friday 8:30am - 4:30pm Central Standard Time
We are closed during the following holidays:
* Thanksgiving Day and the Following Friday
* Christmas Eve and Christmas Day
The condition of this item is: Working and Tested with a 7 Day DOA Warranty
IT Remarketing provides a 7 Calendar Day Warranty against DOA on all items described as working. This warranty is provided to give you the opportunity to test the equipment, and begins on the date of delivery.
Thank you for choosing IT Remarketing as your source for new and used equipment!
7. Refunds are only provided if a suitable replacement is not available.
