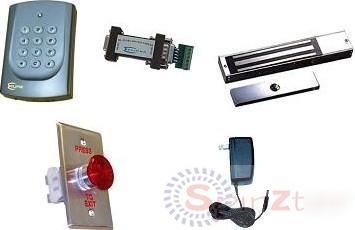

1 door access control kit with 600LB lock and software
1 door Access control kit with 600lb lock and software
Out door Security Keypad & Proximity card reader access control
This proximity card reader is a perfect access control device for inside doors in any sensitive area. Maximum distance is approx. 15cm (5.9 inches). If you need to control access at a security door, this indoor/outdoor security keypad and proximity card reader is a perfect choice.
Keypad will lock for 30 seconds after continuous error operation
Built-in watchdog to prevent system halting
Support delay relay auto-relock function
RS-485 support for networking (via controller or directly)
Built-in reader and additional reader support port for exit or anti-pass-back function
Control mode, card capacity and card type assignable by user directly
RF Frequency / Reading range 125 kHz / 10-18cm
Networking: RS-485, 9600, N, 8, 1
External reader port: Suitable for all WG, ABA reader, 125K, 13.56M (Mifare) or 2.4G reader
Door relay: 12VDC @ 2A NO/NC/COM 0.1-60 sec. latch type
Alarm relay: transistor output/serial output (selective)
DI input: Egress button / door sensor / card sensor
Serial port: limit switch (form C)
Dimensions: 112mm x 76mm x 25mm (4.41" x 2.99" x .98")
Screw terminal connector on RS485 side
Working mode: Asynchronous half-pair-work difference transmission.
This converter will connect from the keypad to the PC. This will allow you to install the software and be able to control the door.
( You will need to use a 18/2 gauge wire to connect from keypad to converter)
701 Server and 701 Client Software
701 Server and 701 Client are multiple language and true 32-bit software package that runs
under Windows 98, 2000, NT and XP, Vista and is for all ECLIPSE Proximity Access Control
The 701 Server is a dedicated software program that provides communication port selection,
The 701 Client is a software program that dedicates the software tools for Door Access Control,
Electric Magnetic Door Lock 600lb
This electrically activated magnetic lock operates on 12 or 24 volts DC.
* Dimensions: 184 X 19 X 36mm
Access Control 1.8mm thick proximity cards pack of 25
ACC900 Reader Install Manual.pdf (3095973 bytes)
Acc-900 Reader Program Quick Sheet.pdf (208697 bytes)
ECl Access Control Software.pdf (14428407 bytes)
How do I wire the converter to the Reader?.doc (60416 bytes)
