10R" x 36" cincinnati plain cylindrical grinder #24313

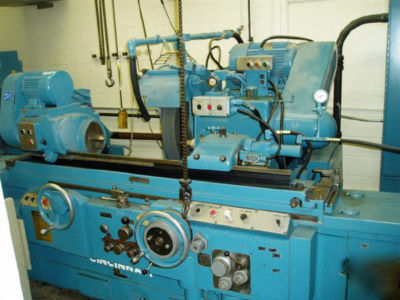

10R" X 36" CINCINNATI PLAIN CYLINDRICAL GRINDER
New 1969, Serial No 35312D5V-0001, Ltr LL
Automatic Behind-The-Wheel Dresser
Acrafeed Dual Rate Automatic In-Feed Attachment
Automatic Grinding Wheel Balancing
Auto Footstock - Gap Eliminator
10" Wide Grinding Wheel Arrangement
Hydromation Coolant & Filtration System
Swing Over Table, Maximum.............. 10.625"
Distance Between Centers, Maximum...... 37.3"
Distance Between Centers, Nominal...... 36"
Grinding wheel Diameter, Standard...... 30"
Grinding Wheel width, Maximum.......... 10"
Grinding Wheel Hole Diameter........... 12"
Table Swivel Taper Toward Wheelhead.... 3.5" TPF
Table Swivel Taper Away Wheelhead...... 1" TPF
Table Swivel Angle Toward Wheelhead.... 8.5-DEGREES
Table Swivel Angle Away Wheelhead...... 3-DEGREES
Workhead And tailstock Center Tapers... #12 B&S
Table Longitudinal Feeds, Infinite..... 3 TO 220 IPM
Grinding Wheelhead Spindle Motor....... 20 HP
Workhead Motor, Horsepower/RPM......... 1.5 HP 230V DC
Workhead Motor, RPM.................... 1150 TO 2300 RPM
Overall Dimensions, L x D.............. 10'8" X 6'6"
Weight, Approximately.................. 11500 LBS
