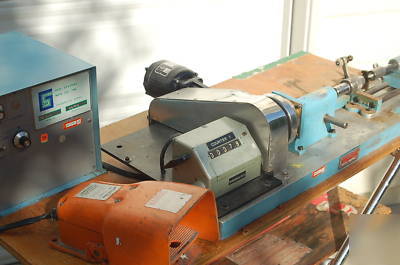

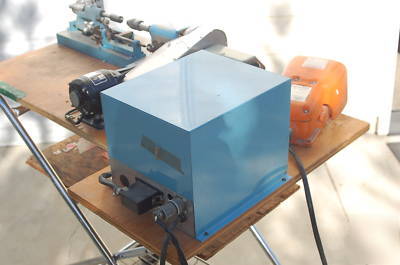

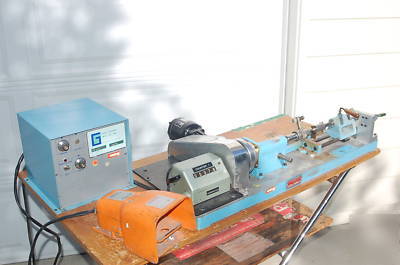

Geo stevens 39AM precision miniature bobbin coil winder
Geo Stevens 39 AML - S/N 26779
All types of random wound Bobbin Coils; solenoids ; repeater coils as well as small precision instrument type miniaturized windings.
Max coil 0D = 1-1/2" ( 38.1mm )
Max Coil Length 3/4" (19.05mm )
Winding Range 8 to 500 turns-per-layer
Max. Loading Distance for Multiple Winding 5-1/2" ( 139.7 mm )
Winding Speeds - up to 7000 RPM

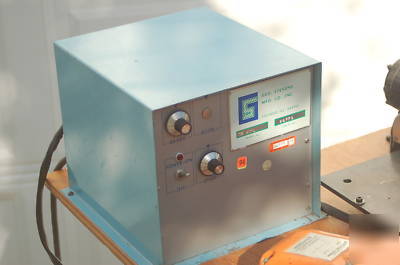

Motor equip- 1/12 HP , 7500 RPM , W/Built in Speed control 115 volt
Positive stopping Magnetic Brake

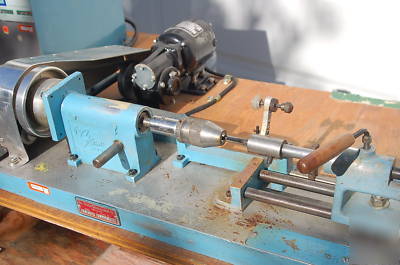

Output End of Spindle 3/8" ( 9.525 mm ) flatted shaft. accommodates chucks or mandrel adapters.
EXTREMLY COMPACT WINDING HEAD DESIGN ONLY 5" ( 127mm) W x 3-1/2" (88.9 mm ) H x 1-1/2" (38.1 mm ) THICK PROVIDES COMPLETE OPERATOR ACCESSIBILITY FOR PRECISION COIL WORK.

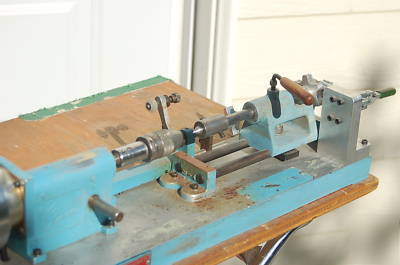

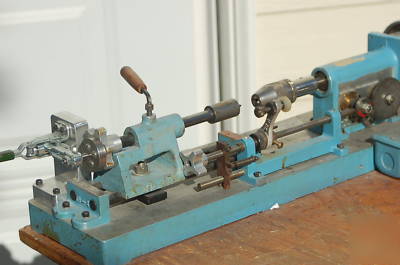

TAILSTOCK FOR MULTIPLE WINDING OR FOR WINDING SOLID CORE BOBBINS .......................
